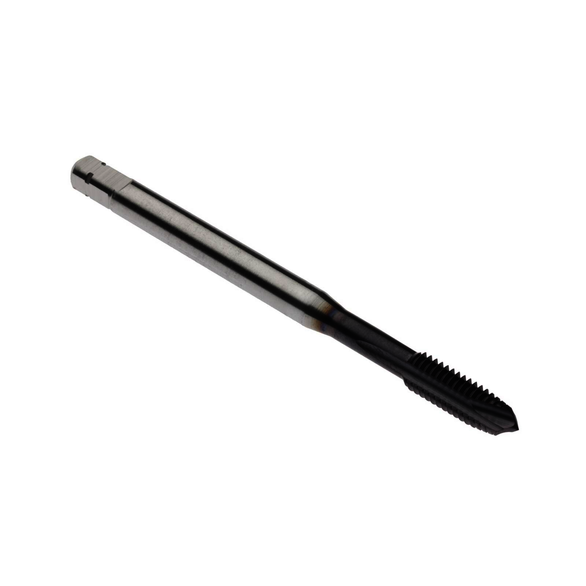

Seco 02999901 Threadmaster™ MTP-P003 Spiral Point Tap, Right Hand Cutting, M1.8x0.35 Thread, H6 Thread Limit, Plug Chamfer, 2 Flutes, AlTiN Coated, Powdered Metal
SECO 02999901
$107.73
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 40 mm
- Shank Diameter: 2.5 in
- Shank Diameter - Decimal: 0.09842 in
- Shank Diameter - Metric: 2.5 mm
- Thread Length: 7 mm
- Thread Standard: Metric Thread
- Number of Flutes: 2
- Thread Limit: H6
- Material: Powdered Metal
- Class of Fit: 6HX
- Finish/Coating: AlTiN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 40 mm
- Series: Threadmaster MTP-P003
- Size: M1.8x0.35
- Thread Length - Metric: 7 mm
- Finish: AlTiN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 371
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-P003 | Measurement System: Metric | M1.8x0.35 Thread | Plug Chamfer | 2 Flutes | Powdered Metal | AlTiN Coated | Class of Fit: 6HX | Right Hand Cutting | 7 mm Thread Length | 40 mm Overall Length | 2.5 mm Shank Dia | Material Application: Steel | H6 Thread Limit | No Through Coolant
