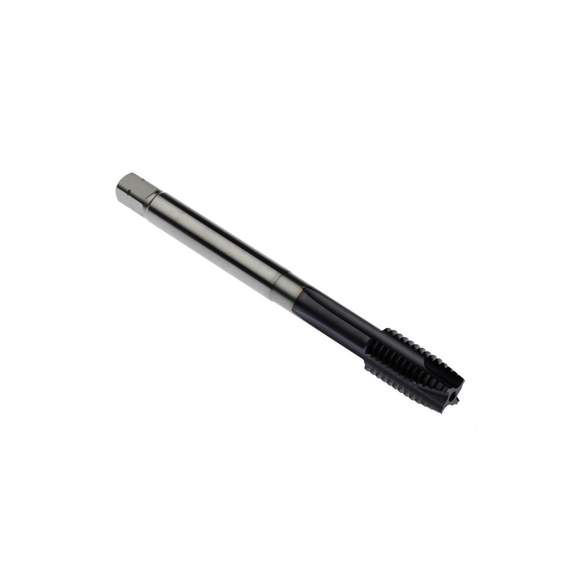

Seco 02999915 Threadmaster™ MTP-P004 Spiral Point Tap, Right Hand Cutting, M4x0.7 Thread, H6 Thread Limit, Plug Chamfer, 3 Flutes, AlTiN Coated, Powdered Metal
SECO 02999915
$64.92
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 63 mm
- Shank Diameter: 2.8 in
- Shank Diameter - Decimal: 0.11023 in
- Shank Diameter - Metric: 2.8 mm
- Thread Length: 12 mm
- Thread Standard: Metric Thread
- Thread Size: M4x0.7
- Number of Flutes: 3
- Thread Limit: H6
- Material: Powdered Metal
- Class of Fit: 6HX
- Finish/Coating: AlTiN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: AlTiN
- Overall Length - Metric: 63 mm
- Series: Threadmaster MTP-P004
- Size: M4x0.7
- Thread Length - Metric: 12 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-P004 | Measurement System: Metric | M4x0.7 Thread | Plug Chamfer | 3 Flutes | Powdered Metal | AlTiN Coated | Class of Fit: 6HX | Right Hand Cutting | 12 mm Thread Length | 63 mm Overall Length | 2.8 mm Shank Dia | Material Application: Steel | H6 Thread Limit | No Through Coolant
