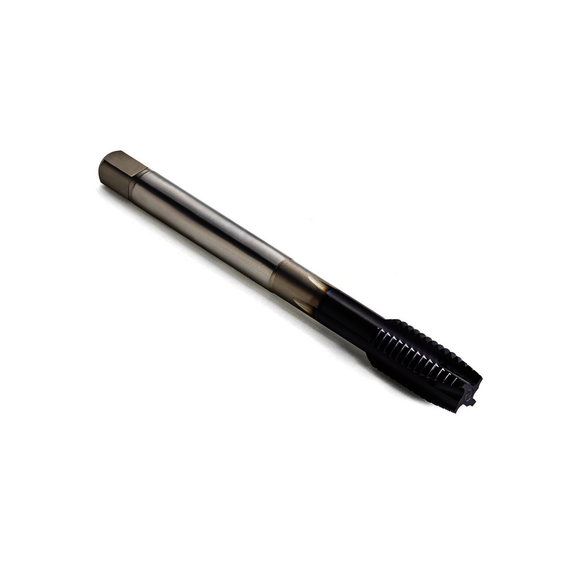

Seco 02999938 Threadmaster™ MTP-P004-A Spiral Point Tap, Right Hand Cutting, M18x2.5 Thread, H6 Thread Limit, Plug Chamfer, 4 Flutes, AlTiN Coated, Powdered Metal
SECO 02999938
$322.25
/ EA
Out of Stock
- Coolant Through: Yes
- Shank Diameter - Decimal: 0.55118 in
- Shank Diameter - Metric: 14 mm
- Thread Length: 30 mm
- Thread Standard: Metric Thread
- Number of Flutes: 4
- Thread Limit: H6
- Material: Powdered Metal
- Class of Fit: 6HX
- Finish/Coating: AlTiN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: AlTiN
- Overall Length - Metric: 125 mm
- Series: Threadmaster MTP-P004-A
- Size: M18x2.5
- Thread Length - Metric: 30 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-P004-A | Measurement System: Metric | M18x2.5 Thread | Plug Chamfer | 4 Flutes | Powdered Metal | AlTiN Coated | Class of Fit: 6HX | Right Hand Cutting | 30 mm Thread Length | 125 mm Overall Length | 14 mm Shank Dia | Material Application: Steel | H6 Thread Limit | Yes Through Coolant
