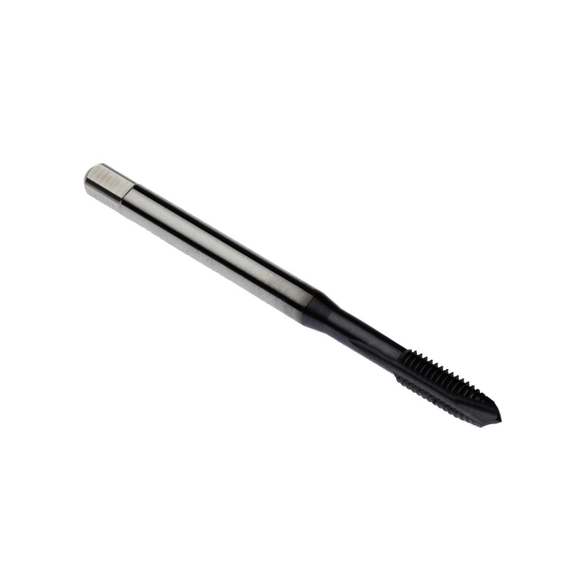

Seco 03000072 Threadmaster™ MTP-M003 Spiral Point Tap, Right Hand Cutting, M1.4x0.3 Thread, H5 Thread Limit, Plug Chamfer, 2 Flutes, TiCN Coated, Cobalt
SECO 03000072
$94.50
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 40 mm
- Shank Diameter: 2.5 in
- Shank Diameter - Decimal: 0.09842 in
- Shank Diameter - Metric: 2.5 mm
- Thread Length: 6.5 mm
- Thread Standard: Metric Thread
- Number of Flutes: 2
- Thread Limit: H5
- Material: Cobalt
- Class of Fit: 5HX
- Finish/Coating: TiCN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 40 mm
- Series: Threadmaster MTP-M003
- Size: M1.4x0.3
- Thread Length - Metric: 6.5 mm
- Finish: TiCN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 371
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-M003 | Measurement System: Metric | M1.4x0.3 Thread | Plug Chamfer | 2 Flutes | Cobalt | TiCN Coated | Class of Fit: 5HX | Right Hand Cutting | 6.5 mm Thread Length | 40 mm Overall Length | 2.5 mm Shank Dia | Material Application: Stainless Steel | H5 Thread Limit | No Through Coolant
