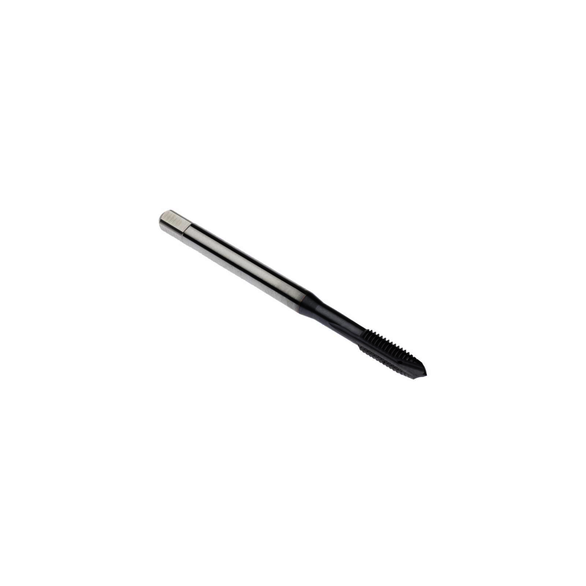

Seco 03000098 Threadmaster™ MTP-M003-A Spiral Point Tap, Right Hand Cutting, M10x1.5 Thread, H6 Thread Limit, Plug Chamfer, 3 Flutes, TiCN Coated, Cobalt
SECO 03000098
$112.55
/ EA
Out of Stock
- Coolant Through: Yes
- Overall Length: 100 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Thread Length: 19.2 mm
- Thread Standard: Metric Thread
- Number of Flutes: 3
- Thread Limit: H6
- Material: Cobalt
- Class of Fit: 6H
- Finish/Coating: TiCN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: TiCN
- Overall Length - Metric: 100 mm
- Series: Threadmaster MTP-M003-A
- Size: M10x1.5
- Thread Length - Metric: 19.2 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 371
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-M003-A | Measurement System: Metric | M10x1.5 Thread | Plug Chamfer | 3 Flutes | Cobalt | TiCN Coated | Class of Fit: 6H | Right Hand Cutting | 19.2 mm Thread Length | 100 mm Overall Length | 10 mm Shank Dia | Material Application: Stainless Steel | H6 Thread Limit | Yes Through Coolant
