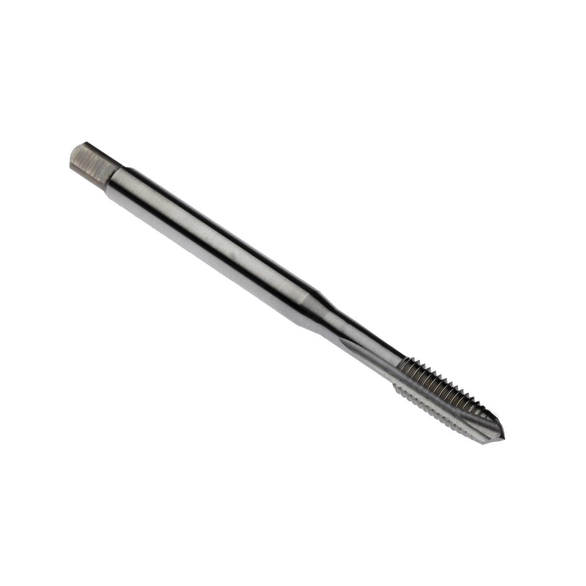

Seco 03000138 Threadmaster™ MTP-N001 Spiral Point Tap, Right Hand Cutting, M5x0.8 Thread, H6 Thread Limit, Plug Chamfer, 2 Flutes, Bright, Cobalt
SECO 03000138
$36.87
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 70 mm
- Shank Diameter: 6 in
- Shank Diameter - Decimal: 0.23622 in
- Shank Diameter - Metric: 6 mm
- Thread Length: 13 mm
- Thread Standard: Metric Thread
- Thread Size: M5x0.8
- Number of Flutes: 2
- Thread Limit: H6
- Material: Cobalt
- Class of Fit: 6H
- Finish/Coating: Bright
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: Bright
- Overall Length - Metric: 70 mm
- Series: Threadmaster MTP-N001
- Size: M5x0.8
- Thread Length - Metric: 13 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 371
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-N001 | Measurement System: Metric | M5x0.8 Thread | Plug Chamfer | 2 Flutes | Cobalt | Bright | Class of Fit: 6H | Right Hand Cutting | 13 mm Thread Length | 70 mm Overall Length | 6 mm Shank Dia | Material Application: Non-Ferrous Materials | H6 Thread Limit | No Through Coolant
