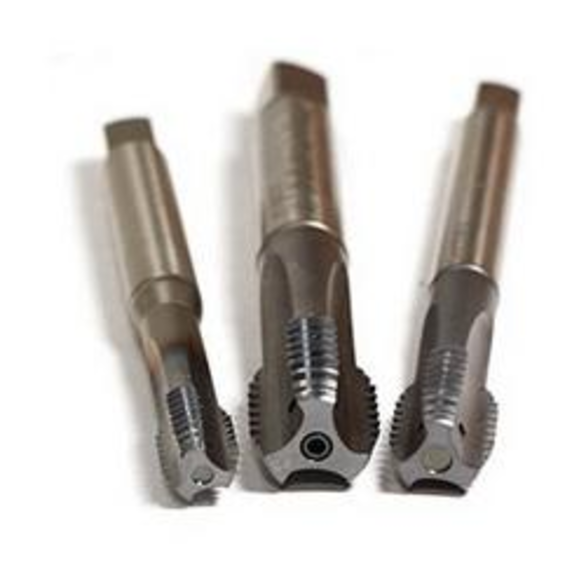

Emuge BW179401.5009 Rekord 1A-SPEED IKZN BW179401 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, 1/4-20 Thread, Modified Bottoming Chamfer, 3 Flutes, TiCN Coated, HSS-E
EMUGE BW179401.5009
$110.11
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: 1/4-20
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 3
- Class of Fit: 2BX
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 3.15 in
- Series: Rekord 1A-SPEED IKZN BW179401
- Shank Diameter: 0.255 in
- Shank Length: 1.97 in
- Thread Length: 0.669 in
- Thread Standard: UNC
- Speed taps are able to operate at higher cutting speeds than conventional designs
- Rekord A-SPEED is a straight flute design for high speed tapping in short chipping materials
- IKZN - radial coolant hole design
- TiCN coated for additional wear resistance and tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole and through hole threads
Emuge Straight Flute Machine Tap | Form C Reinforced Shank | Series: Rekord 1A-SPEED IKZN BW179401 | Measurement System: Imperial | UNC | 1/4-20 | Modified Bottoming Chamfer | 3 Flutes | HSS-E | TiCN Coated | Class of Fit: 2BX | Right Hand Cutting | 0.669 in Thread Length | 3.15 in Overall Length | 0.255 in Shank Dia | 1.97 in Shank Length | Cast Iron | Aluminum Alloys and Copper Alloys Material Application
