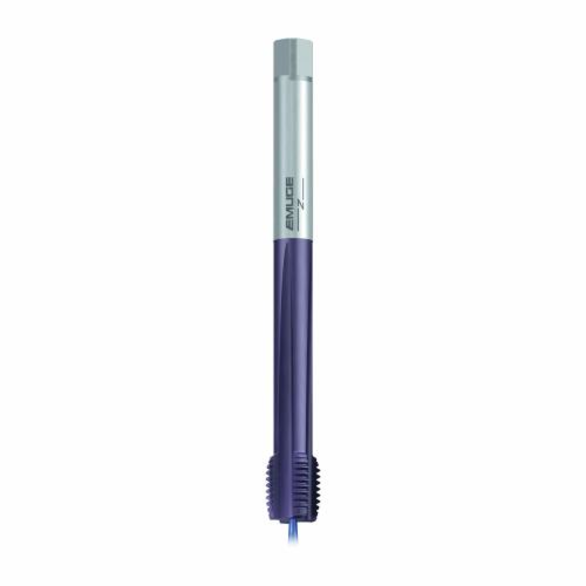

Emuge C0539401.0142 Rekord 2A-Z-IKZ-LF4 C0539401 Extra Length Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, M42x4.5 Thread, 2-3 Modified Bottoming Plug Chamfer, 4 Flutes, TiCN Coated, HSS-E

• InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
• The Rekord A flute geometry is designed for short chipping materials and produces chips that stay in the flutes
• TiCN coating provides higher surface hardness and added lubricity for extended tool life
• IKZ - axial coolant hole design
• Extra length flute design for the wind turbine industry
• Z designates that the tap is designed for CNC controlled machines with synchronous feed ability
• DIN standard dimensions for shank size
• TiCN PVD coating for maximum tool life
• Replacement part for old tool C053C401.0142

Standards/Approvals: DIN 13

For short chipping materials in through and blind hole applications

Emuge Straight Flute Machine Tap | Extra Length Form C Reduced Shank | Series: Rekord 2A-Z-IKZ-LF4 C0539401 | Measurement System: Metric | M | M42x4.5 | 2-3 Modified Bottoming Plug Chamfer | 4 Flutes | HSS-E | TiCN Coated | Class of Fit: 6HX | Right Hand Cutting | 45 mm Thread Length | 340 mm Overall Length | 32 mm Shank Dia | Aluminum Alloys | Cast Iron | Copper Alloys | Duroplastic and Steel Material Application | Yes Through Coolant (Yes/No)
