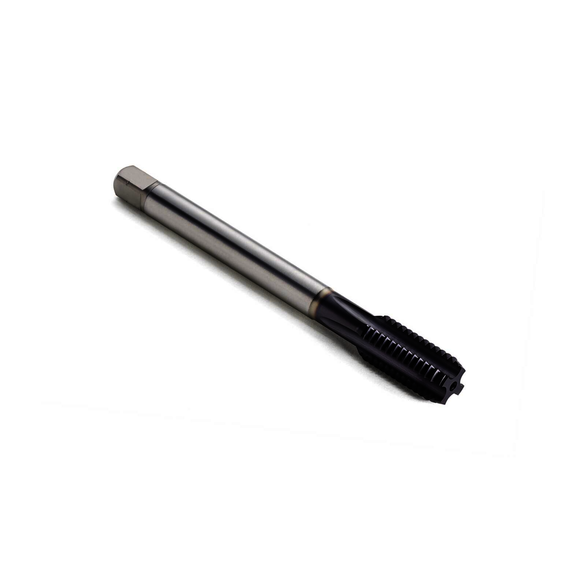

Seco 02999840 Threadmaster™ MTS-K002-A Straight Flute Tap, Right Hand Cutting, M33x3.5 Thread, H6 Thread Limit, Modified Bottoming Chamfer, 4 Flutes, TiAlN Coated, Powdered Metal
SECO 02999840
$904.39
/ EA
Out of Stock
- Coolant Through: Yes
- Material: Powdered Metal
- Finish/Coating: TiAlN Coated
- Number of Flutes: 4
- Class of Fit: 6HX
- Thread Limit: H6
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Overall Length: 180 mm
- Overall Length - Metric: 180 mm
- Series: Threadmaster MTS-K002-A
- Shank Diameter - Decimal: 0.98425 in
- Shank Diameter - Metric: 25 mm
- Shank Length: 67 mm
- Shank Length - Metric: 67 mm
- Size: M33x3.5
- Thread Length: 50 mm
- Thread Length - Metric: 50 mm
- Thread Standard: Metric Thread
- Finish: TiAlN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For blind hole and through hole applications
Seco Straight Flute Tap | Series: Threadmaster MTS-K002-A | Measurement System: Metric | M33x3.5 Thread | Modified Bottoming Chamfer | 4 Flutes | Powdered Metal | TiAlN Coated | Class of Fit: 6HX | Right Hand Cutting | 50 mm Thread Length | 180 mm Overall Length | 25 mm Shank Dia | 67 mm Shank Length | Material Application: Cast Iron | H6 Thread Limit | Yes Through Coolant
