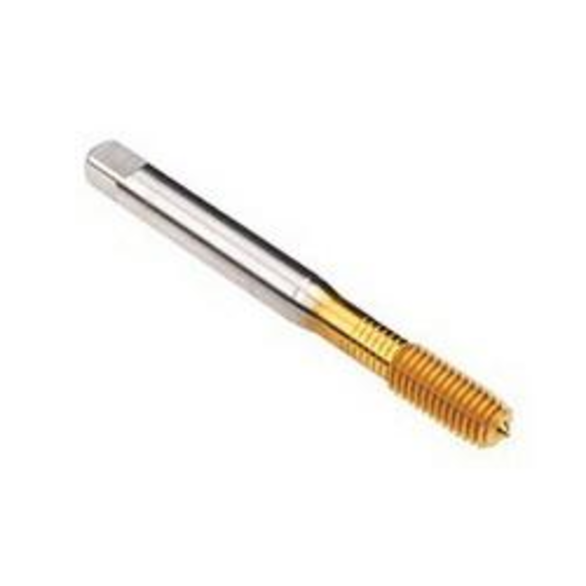

Emuge BU93F300.5715 SELF-LOCK™ BU93F300 Form E Thread Forming Tap, 3/8-24 Thread
EMUGE BU93F300.5715
$132.58
/ EA
Out of Stock
- Thread Size: 3/8-24
- Overall Length: 3.937 in
- Thread Standard: LK-UNF
- Finish/Coating: TiN-T1 Coated
- Material: HSS-E
- Chamfer Type: Bottoming
- Class of Fit: BT
- Cutting Direction: Right Hand
- Series: SELF-LOCK™ BU93F300
- Shank Diameter: 0.381 in
- Thread Length: 0.866 in
- Rekord druck-s form tap provides chipless tapping in low tensile materials
- SELF-LOCK™ thread form
- TiN-T1 - specialized titanium nitride coating formula for optimum performance
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form E | Series: SELF-LOCK BU93F300 | Measurement System: Imperial | 3/8-24 | LK-UNF | Bottoming Chamfer | 0.866 in Thread Length | 3.937 in Overall Length | Right Hand Cutting | Class of Fit: BT | 0.381 in Shank Dia | HSS-E | TiN-T1 Coated
