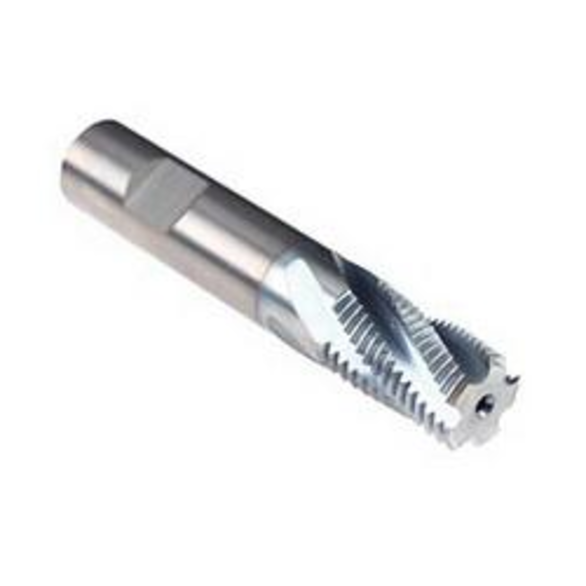

Emuge GF162126.9548 GF Style Spiral Flute Thread Mill With Axial Through Coolant, 1/2-14 BSPP Thread, 80 mm OAL, 4 Flutes, 12 mm Dia Shank
EMUGE GF162126.9548
$580.11
/ EA
Out of Stock
- Cutting Diameter - Metric: 11.9 mm
- Shank Diameter - Metric: 12 mm
- Shank Length: 1.772 in
- Thread Size: 1/2-14
- Number of Flutes: 4
- Finish/Coating: TiCN Coated
- Material: Carbide
- Thread Type: BSPP
- Length of Cut - Metric: 20.9 mm
- Overall Length - Metric: 80 mm
- Series: GF162126
- Shank Type: Weldon Flat
- GF thread mill designed for internal and external threads G Rp (BSPP) pipe threads
- Whitworth pipe thread G per DIN EN ISO 228, DIN EN 10226-1, ISO 7/1, BS 84
- IKZ - axial coolant fed for efficient chip evacuation
- TiCN coated for wear resistance and additional tool life
- 30 deg right hand spiral flute geometry for blind and through hole applications
Standards/Approvals: DIN EN ISO 228|DIN EN 10226-1|ISO 7/1|BS 84|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Spiral Flute Thread Mill | GF Style | Series: GF162126 | 1/2-14 | BSPP | 11.9 mm Cutting Dia | 20.9 mm Length of Cut | 80 mm Overall Length | 4 Flutes | Weld-On Flat Shank | 12 mm Shank Dia | 1.772 in Shank Length | Carbide | TiCN Coated
