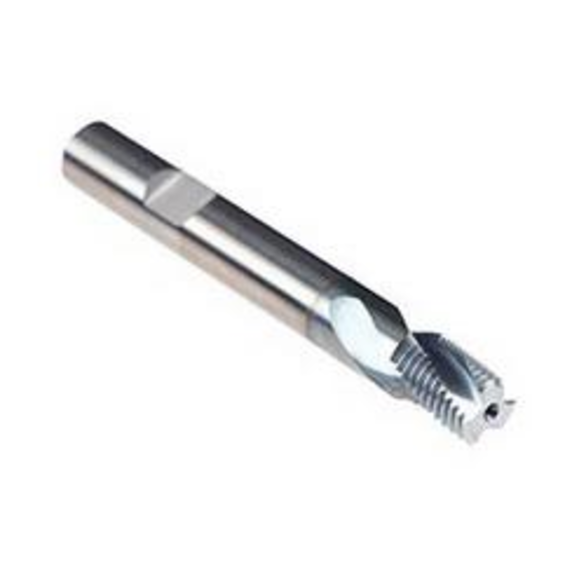

Emuge GF172106.5905 GF Style Spiral Flute Thread Mill With Axial Through Coolant, 1/8-27 NPSF Thread, 2.48 in OAL, 3 Flutes, 8 mm Dia Shank
EMUGE GF172106.5905
$762.25
/ EA
Out of Stock
- Overall Length: 2.48 in
- Part Number: GF172106.5905
- Shank Diameter - Metric: 8 mm
- Shank Length: 1.417 in
- Thread Standard: NPSF
- Thread Size: 1/8-27
- Pitch: 27 mm
- Cutting Diameter: 0.301 in
- Number of Flutes: 3
- Finish/Coating: TiCN Coated
- Material: Carbide
- Length of Cut: 0.424 in
- Through Coolant: Axial
- Thread Type: NPSF
- Series: GF172106
- Shank Type: Weldon Flat
- NPSF American standard straight pipe tap per ANSI B1.20.3
- Dryseal internal straight pipe thread for fuel, combined with external tapered pipe thread NPTF or PTF-SAE-Short
- Gage with tapered gages
- IKZ - axial coolant fed for efficient chip evacuation
- TiCN coated for wear resistance and additional tool life
- 15 deg right hand spiral flute geometry for blind and through hole applications
Standards/Approvals: ANSI B1.20.3|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Spiral Flute Thread Mill | GF Style | Series: GF172106 | 1/8-27 | NPSF | 0.301 in Cutting Dia | 0.424 in Length of Cut | 2.48 in Overall Length | 3 Flutes | Weld-On Flat Shank | 8 mm Shank Dia | 1.417 in Shank Length | Carbide | TiCN Coated
