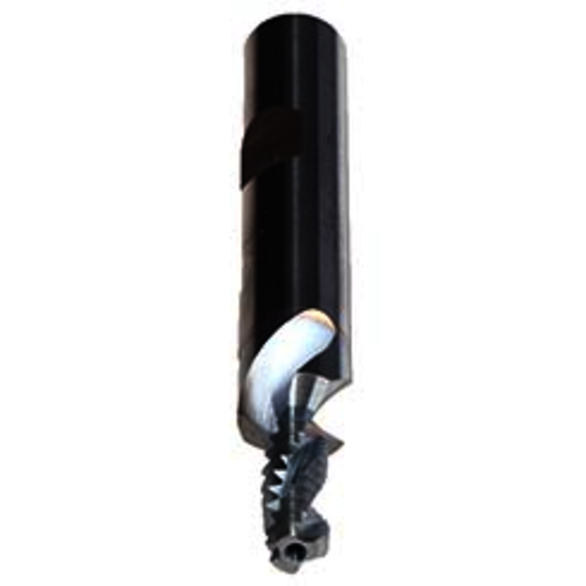

Emuge GF332106.0050 GSF Style Spiral Flute Thread Mill With Axial Through Coolant, M5x0.8 Coarse Thread, 55 mm OAL, 3 Flutes, 6 mm Dia Shank
EMUGE GF332106.0050
$425.42
/ EA
Out of Stock
- Cutting Diameter - Metric: 4 mm
- Flute Direction: Right Hand; Left Hand
- Overall Length: 55.00 mm
- Part Number: GF332106.0050
- Shank Diameter - Metric: 6 mm
- Shank Length: 1.4173 in
- Thread Size: M5x0.8
- Pitch: 0.8 mm
- Cutting Diameter: 4.00 mm
- Number of Flutes: 3
- Finish/Coating: TiCN Coated
- Material: Carbide
- Through Coolant: Axial
- Thread Type: Coarse
- Length of Cut - Metric: 10.8 mm
- Overall Length - Metric: 55 mm
- Series: GF332106
- Shank Type: Weldon Flat
- GSF 2XD thread mill with countersink step
- One tool for threading and 90 deg chamfer operations
- For internal threading
- Coolant fed for efficient chip evacuation
- 30 deg right hand spiral flute design
- TiCN coated for abrasion resistance
Standards/Approvals: PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Thread Mill | GSF Style | Series: GF332106 | M5x0.8 | Coarse | 4 mm Cutting Dia | 10.8 mm Length of Cut | 55 mm Overall Length | 3 Flutes | Weld-On Flat Shank | 6 mm Shank Dia | 1.4173 in Shank Length | Carbide | TiCN Coated
