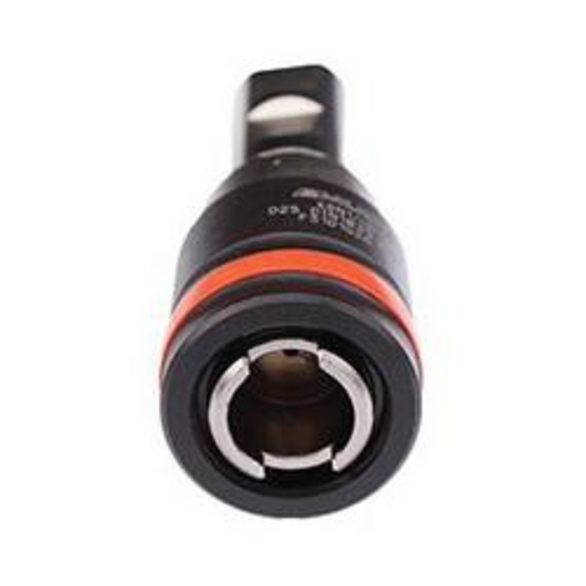

Emuge F3101G26.1 KSN/HD Tension/Compression Quick-Change Tap Holder With Axial Through Coolant, Cylindrical Shank, EM01 Adapter, M14 Max Tap Capacity
EMUGE F3101G26.1
$1,341.68
/ EA
Out of Stock
- Shank Type: Cylindrical
- Minimum Tap Capacity: M3
- Maximum Tap Capacity: M14
- Shank Diameter - Metric: 25 mm
- Adapter Size: EM01
- Nose Diameter - Metric: 40 mm
- Projection - Metric: 62 mm
- Series: KSN/HD
- Quick-change clamping system holder style KSN 1/HD
- Accommodates tap sizes - M3 to M14/#4 to 9/16 in
- Length compensation on tension/compression
- Pressure point release mechanism
- Front release feature protects against damage from excessive axial tension
- Uses an EM 01 quick-change adapter
- HD coolant fed design (50 bar/700 psi maximum)
Standards/Approvals: DIN 1835 B+E
For use on CNC machining centers and other machine tools
Emuge Quick-Change Tap Holder | Tension/Compression | Series: KSN/HD | Cylindrical Shank | 25 mm Shank Dia | M3 Minimum Tap Capacity | M14 Maximum Tap Capacity | 62 mm Projection | EM01 Adapter | 40 mm Nose Dia
