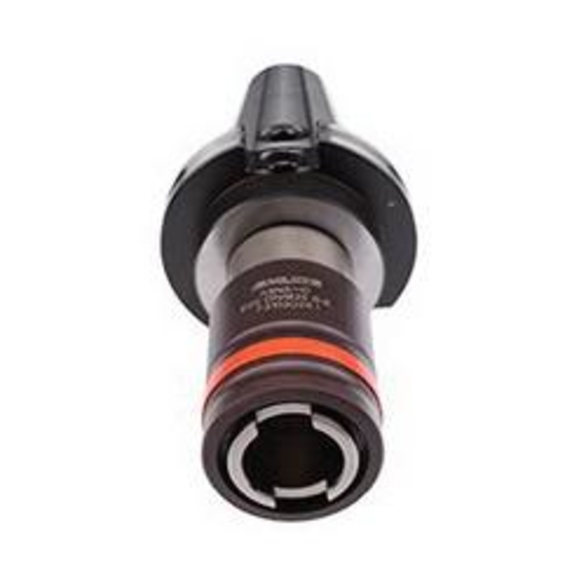

Emuge F3103G26.1 KSN/HD Tension/Compression Quick-Change Tap Holder With Axial Through Coolant, Cylindrical Shank, EM03 Adapter, M24 Max Tap Capacity
EMUGE F3103G26.1
$1,563.13
/ EA
Out of Stock
- Shank Type: Cylindrical
- Minimum Tap Capacity: M4.5
- Maximum Tap Capacity: M24
- Shank Diameter - Metric: 25 mm
- Adapter Size: EM03
- Nose Diameter - Metric: 56 mm
- Projection - Metric: 98 mm
- Series: KSN/HD
- Quick-change ball tap clamping system or clamping on the square holder style KSN 3/HD
- Accommodates tap sizes - M4.5 to M24/#10 to 1 in
- Length compensation on tension/compression
- Pressure point release mechanism
- Front release feature protects against damage from excessive axial tension
- Uses an EM 03 quick-change adapter
- HD coolant fed design (50 bar/700 psi maximum)
Standards/Approvals: DIN 1835 B+E
For use on CNC machining centers and other machine tools
Emuge Quick-Change Tap Holder | Tension/Compression | Series: KSN/HD | Cylindrical Shank | 25 mm Shank Dia | M4.5 Minimum Tap Capacity | M24 Maximum Tap Capacity | 98 mm Projection | EM03 Adapter | 56 mm Nose Dia
