Proto Industrial

Proto® J6020AB Micrometer Torque Wrench, 3/4 in Drive, Ratchet Head, 120 - 600 ft-lb, 2 ft-lb, 41-9/16 in OAL

PROTO J6020AB
$0.00 / EA
Out of Stock
Proto® J6020AB Micrometer Torque Wrench, 3/4 in Drive, Ratchet Head, 120 - 600 ft-lb, 2 ft-lb, 41-9/16 in OAL
  • Accuracy: +/-3% CW, +/-6% CCW
  • Drive Size: 3/4 in
  • Finish: Full Polished
  • Graduations: 2 ft-lb
  • Handle Type: Ergonomic
  • Head Type: Ratchet
  • Material: Steel
  • Overall Length: 41-9/16 in
  • Rotation Type: CW/CCW
  • Torque Range: 120 - 600 ft-lb
  • Calibrated to +/- 3% clockwise direction and +/- 6% counter clockwise at 20% to 100% of full scale
  • Calibration is accomplished by manual loading the torque wrenches
  • 45-tooth gear/floating pawl design for small 6.8 in arc swing
  • 13% smaller head for access in tight work areas
  • Reversing lever designed for quick, one-handed operation

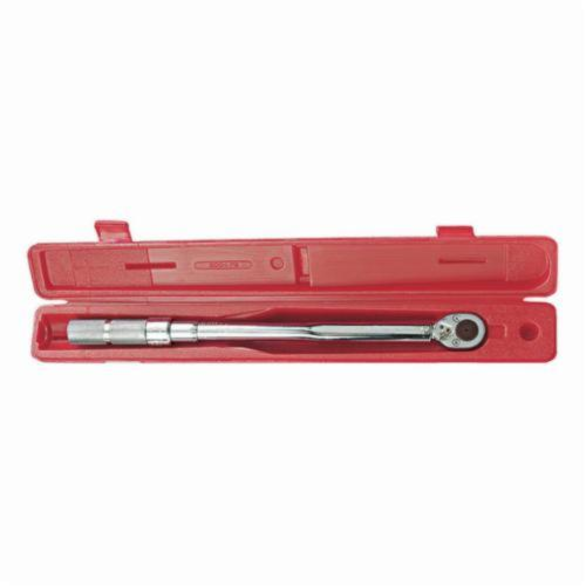

  • Packaged in blow-molded plastic box for protection and easy storage

General Industry, Heavy Equipment and Maintenance

Standard/Approvals: ASME B107.14

Proto® Micrometer Torque Wrench | 3/4 in Drive | 120 - 600 ft-lb | Ratchet Head | Graduations: 2 ft-lb | 41-9/16 in Overall Length | CW/CCW | +/-3% CW | +/-6% CCW Accuracy | Ergonomic Handle | Steel | Full Polished | STA-BLKHAW
