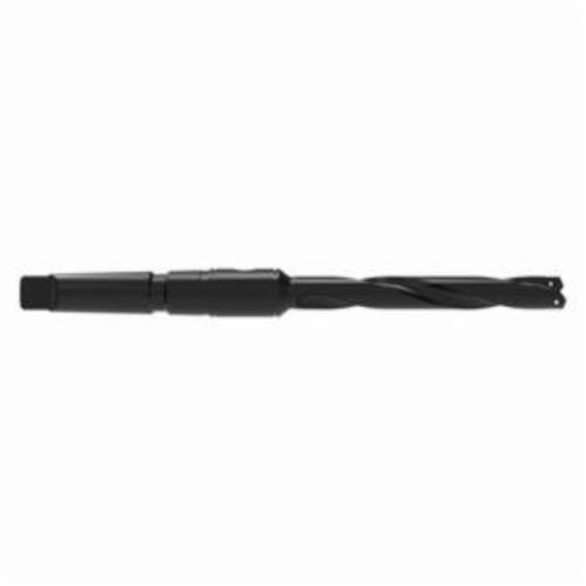

ALLIED #1 TA INT HLDR 3MT Replaceable Drill Body
ALLIED 23010H-003I
$321.41
/ EA
Out of Stock
- Shank Type: Morse Taper
- Flute Type: Helical
- Series: 1
- Coolant Hole Thread: 1/8 in NPT Side
- Drill Body Length: 5-7/8 in
- Drill Depth - Fractional: 4-3/4 in
- Drilling Capacity: 45/64 to 15/16 in
- Length Type: Intermediate
- Maximum Diameter - Fractional: 15/16 in
- Minimum Diameter - Fractional: 45/64 in
- Overall Length - Fractional: 11-5/32 in
- Pipe Tap Side: 1/8 in
- Shank Diameter - Wire: #3 MT
- Tool Holder Style: 23010H
- Tool Reference Length - Fractional: 7-39/64 in
- Type: Helical Flute;Intermediate Length;Replaceable
T-A® Holder:
- Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
- T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
- Lengths from 1XD up to 28XD.12.
- Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
