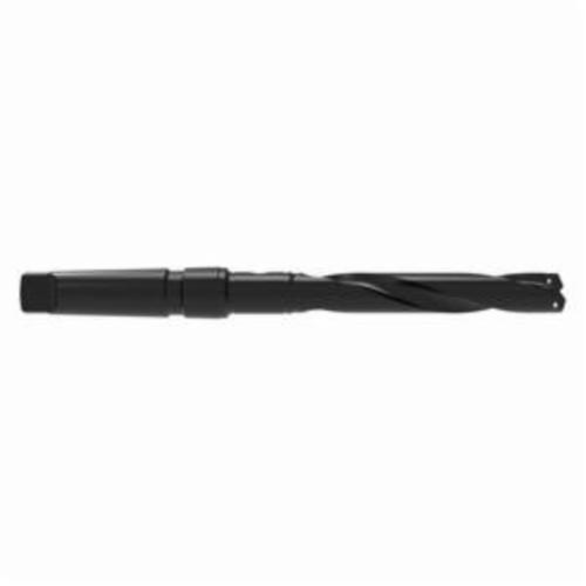

ALLIED #2 TA INT HLDR 4MT Replaceable Drill Body
ALLIED 23020H-004I
$373.25
/ EA
Out of Stock
- Shank Type: Morse Taper
- Flute Type: Helical
- Series: 2
- Coolant Hole Thread: 1/8 in NPT Side
- Drill Body Length: 6-1/2 in
- Drill Depth - Fractional: 5-3/8 in
- Drilling Capacity: 31/32 to 1-3/8 in
- Length Type: Intermediate
- Maximum Diameter - Fractional: 1-3/8 in
- Minimum Diameter - Fractional: 31/32 in
- Overall Length - Fractional: 12-25/32 in
- Pipe Tap Side: 1/8 in
- Shank Diameter - Wire: #4 MT
- Tool Holder Style: 23020H
- Tool Reference Length - Fractional: 8-19/64 in
- Type: Helical Flute;Intermediate Length;Replaceable
T-A® Holder:
- Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
- T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
- Lengths from 1XD up to 28XD.12.
- Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
