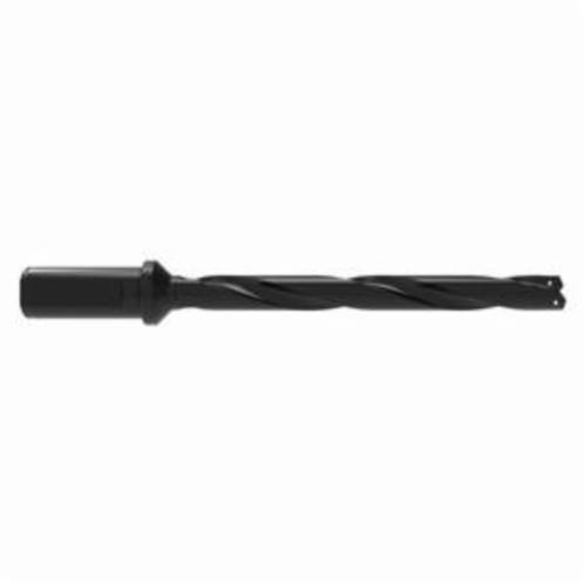

ALLIED #1 TA STD HLDR FLANGED SHK Replaceable Drill Body
ALLIED 24010H-100F
$338.69
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Helical
- Series: 1
- Shank Diameter: 1 in
- Coolant Hole Thread: 1/8 in NPT Rear
- Drill Body Length: 8-3/32 in
- Drill Depth - Fractional: 6-5/8 in
- Drilling Capacity: 45/64 to 15/16 in
- Maximum Diameter - Fractional: 15/16 in
- Minimum Diameter - Fractional: 45/64 in
- Overall Length - Fractional: 10-3/8 in
- Pipe Tap Rear: 1/8 in
- Shank Diameter - Decimal: 1 in
- Shank Length - Fractional: 2-9/32 in
- Tool Holder Style: 24010H
- Tool Reference Length - Fractional: 8-15/64 in
- Type: Helical Flute;Standard Length;Replaceable
- Length Type: Standard
T-A® Holder:
- Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
- T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
- Lengths from 1XD up to 28XD.12.
- Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
