Allied Machine & Engineering

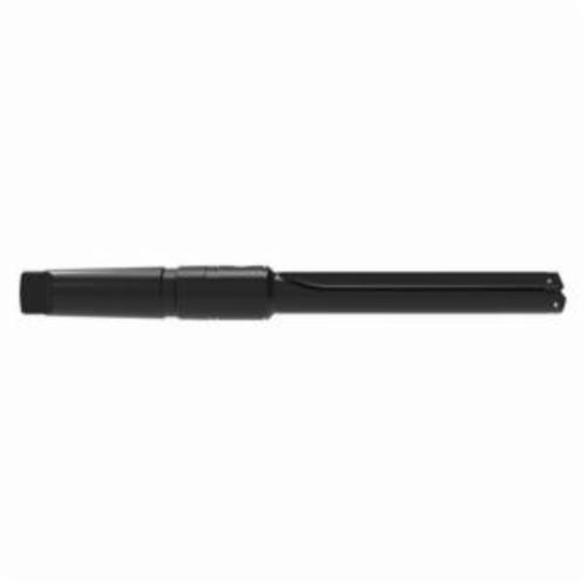

ALLIED #3 TA STD HLDR 5MT Replaceable Drill Body

ALLIED 24030S-005I
$455.04 / EA
Out of Stock
ALLIED #3 TA STD HLDR 5MT Replaceable Drill Body
  • Shank Type: Morse Taper
  • Flute Type: Straight
  • Series: 3
  • Drill Depth - Fractional: 8-1/4 in
  • Maximum Diameter - Fractional: 1-7/8 in
  • Minimum Diameter - Fractional: 1-13/32 in
  • Overall Length - Fractional: 17-5/16 in
  • Pipe Tap Side: 1/4 in
  • Shank Diameter - Wire: #5 MT
  • Tool Reference Length - Fractional: 11-5/8 in
  • Type: Replaceable;Standard Length;Straight Flute
  • Length Type: Standard

T-A® Holder:

  • Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
  • T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
  • Lengths from 1XD up to 28XD.12.
  • Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
