Allied Machine & Engineering

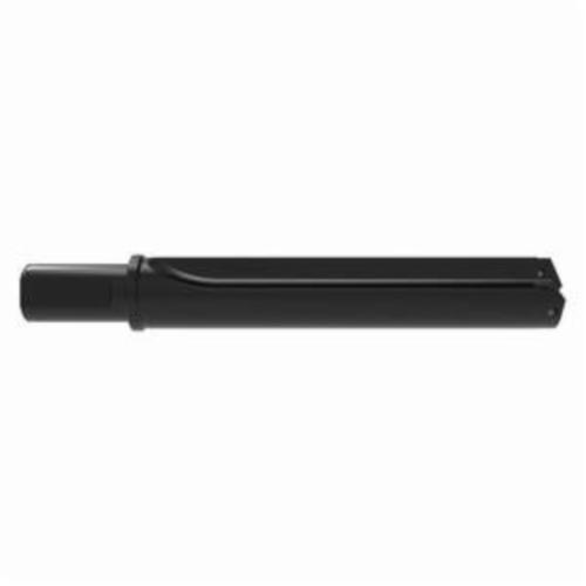

ALLIED #4 TA STD HLDR FLANGED SHK Replaceable Drill Body

ALLIED 24040S-150F
$470.02 / EA
Out of Stock
  • Shank Type: Flanged
  • Flute Type: Straight
  • Series: 4
  • Shank Diameter: 1 1/2 in
  • Coolant Hole Thread: 1/4 in Rear
  • Drill Body Length: 11-1/16 in
  • Drill Depth - Fractional: 9-1/8 in
  • Drilling Capacity: 1-29/32 to 2-9/16 in
  • Maximum Diameter - Fractional: 2-9/16 in
  • Minimum Diameter - Fractional: 1-29/32 in
  • Overall Length - Fractional: 13-3/4 in
  • Pipe Tap Rear: 1/4 in
  • Shank Diameter - Decimal: 1.5 in
  • Shank Diameter - Fractional: 1 1/2 in
  • Shank Length - Fractional: 2-11/16 in
  • Tool Holder Style: 24040S
  • Tool Reference Length - Fractional: 11-1/4 in
  • Type: Replaceable;Standard Length;Straight Flute
  • Length Type: Standard

T-A® Holder:

  • Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
  • T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
  • Lengths from 1XD up to 28XD.12.
  • Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
