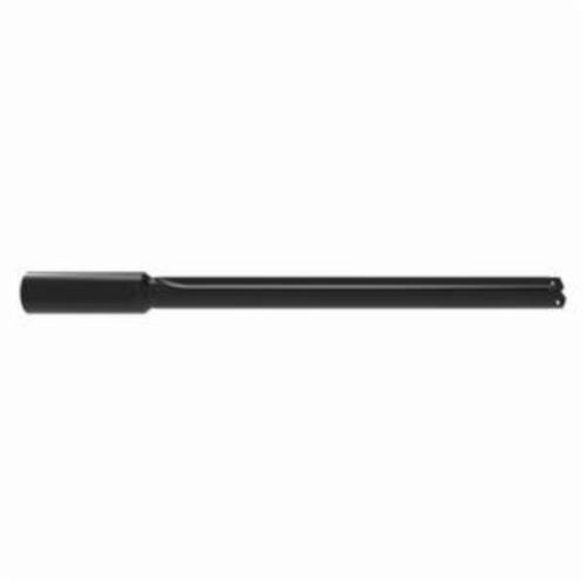

ALLIED #2 TA EXT HLDR 1-1/4"SS Replaceable Drill Body
ALLIED 25020S-125L
$412.42
/ EA
Out of Stock
- Shank Type: Lathe
- Flute Type: Straight
- Series: 2
- Shank Diameter: 1 1/4 in
- Overall Length: 16 in
- Coolant Hole Thread: 1/8 in NPT Rear
- Drill Body Length: 12-1/2 in
- Drill Depth - Fractional: 11-3/8 in
- Drilling Capacity: 31/32 to 1-3/8 in
- Length Type: Extended
- Maximum Diameter - Fractional: 1-3/8 in
- Minimum Diameter - Fractional: 31/32 in
- Pipe Tap Rear: 1/8 in
- Shank Diameter - Decimal: 1.25 in
- Shank Diameter - Fractional: 1 1/4 in
- Shank Length - Fractional: 3-1/2 in
- Tool Holder Style: 25020S
- Tool Reference Length - Fractional: 12-41/64 in
- Type: Deep Hole;Extended Length;Replaceable;Straight Flute
T-A® Holder:
- Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
- T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
- Lengths from 1XD up to 28XD.12.
- Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
