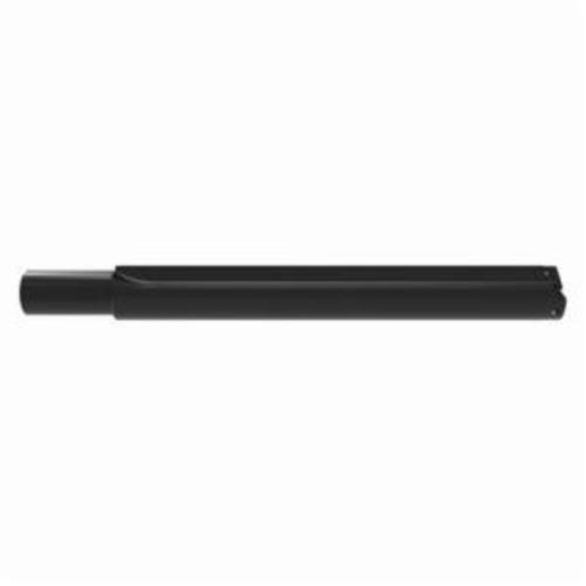

ALLIED #5 TA EXT HLDR 2"SS Replaceable Drill Body
ALLIED 25050S-200L
$997.63
/ EA
Out of Stock
- Shank Type: Lathe
- Flute Type: Straight
- Series: 5
- Shank Diameter: 2 in
- Overall Length: 24 in
- Coolant Hole Thread: 1/2 in NPT Rear and Side
- Drill Body Length: 20 in
- Drill Depth - Fractional: 18-1/4 in
- Drilling Capacity: 2-1/2 to 3-1/2 in
- Length Type: Extended
- Maximum Diameter - Fractional: 3-1/2 in
- Minimum Diameter - Fractional: 2-1/2 in
- Pipe Tap Rear: 1/2 in
- Pipe Tap Side: 1/2 in
- Shank Length: 4 in
- Tool Holder Style: 25050S
- Tool Reference Length - Fractional: 20-1/4 in
- Type: Deep Hole;Extended Length;Replaceable;Straight Flute
- Shank Diameter - Decimal: 2 in
T-A® Holder:
- Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
- T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
- Lengths from 1XD up to 28XD.12.
- Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
