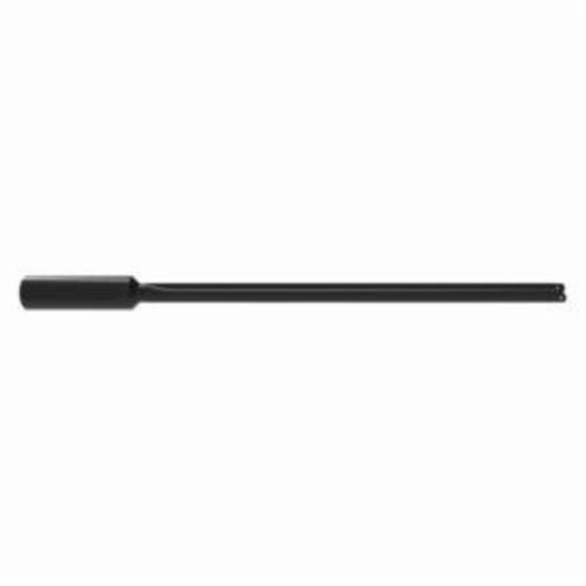

ALLIED #Z TA EXT XL HLDR 3/4"SS Replaceable Drill Body
ALLIED 270Z0S-075L
$360.58
/ EA
Out of Stock
- Shank Type: Lathe
- Flute Type: Straight
- Series: Z
- Shank Diameter: 3/4 in
- Coolant Hole Thread: 1/8 in Rear
- Drill Body Length: 9-17/32 in
- Drill Depth - Fractional: 8-3/4 in
- Drilling Capacity: 7/16 to 1/2 in
- Length Type: XL
- Maximum Diameter - Fractional: 1/2 in
- Minimum Diameter - Fractional: 7/16 in
- Overall Length - Fractional: 11-29/32 in
- Pipe Tap Rear: 1/8 in
- Shank Diameter - Fractional: 3/4 in
- Shank Length - Fractional: 2-3/8 in
- Tool Holder Style: 270Z0S
- Tool Reference Length - Fractional: 9-5/8 in
- Type: Deep Hole;Extra Long Length;Replaceable;Straight Flute
- Shank Diameter - Decimal: 0.75 in
T-A® Holder:
- Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
- T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
- Lengths from 1XD up to 28XD.12.
- Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
