Allied Machine & Engineering

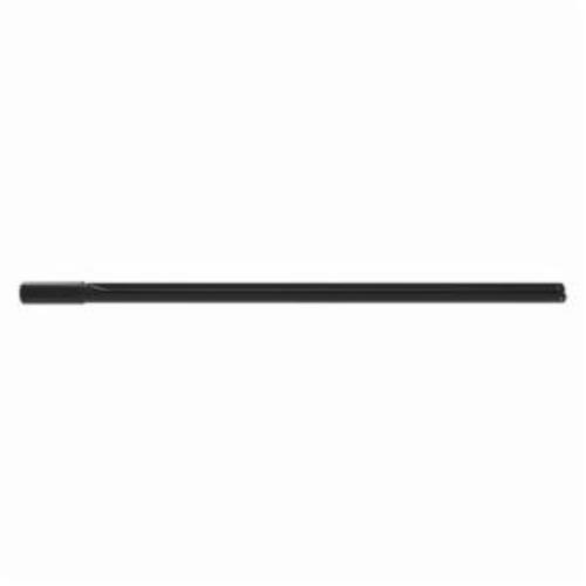

ALLIED #3 TA EXT 3XL HLDR 1-1/2"SS Replaceable Drill Body

ALLIED 29030S-150L
$791.42 / EA
Out of Stock
  • Shank Type: Lathe
  • Flute Type: Straight
  • Series: 3
  • Shank Diameter: 1 1/2 in
  • Coolant Hole Thread: 1/4 in NPT Rear and Side
  • Drill Body Length: 32-1/4 in
  • Drill Depth: 31 in
  • Drilling Capacity: 1-13/32 to 1-7/8 in
  • Length Type: 3XL
  • Maximum Diameter - Fractional: 1-7/8 in
  • Minimum Diameter - Fractional: 1-13/32 in
  • Overall Length - Fractional: 36-1/4 in
  • Pipe Tap Rear: 1/4 in
  • Pipe Tap Side: 1/4 in
  • Shank Diameter - Decimal: 1.5 in
  • Shank Diameter - Fractional: 1 1/2 in
  • Shank Length: 4 in
  • Tool Holder Style: 29030S
  • Tool Reference Length - Fractional: 32-7/16 in
  • Type: 3XL Deep Hole;Replaceable;Straight Flute

T-A® Holder:

  • Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs.
  • T-A® Holders are available in: Helical or Straight flute designs, and Lathe, Morse Taper, or Flange style shanks.
  • Lengths from 1XD up to 28XD.12.
  • Holders cover a range of 0.374” to 4.5” (9.5mm to 114.3mm).
