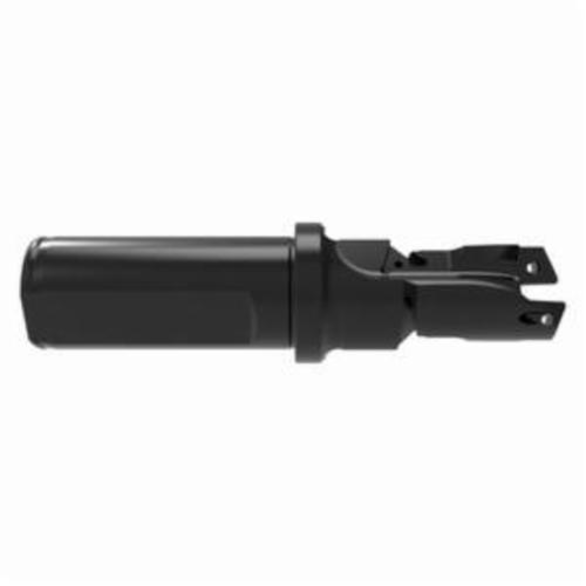

ALLIED 22MM DR/CH GEN3 HLD 1" FLG Replaceable Drill Body
ALLIED 60122C45-100F
$552.96
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Straight
- Series: 22
- Shank Diameter: 1 in
- Drill Body Length: 2-23/64 in
- Drill Depth - Fractional: 1-19/32 in
- Drilling Capacity: 0.866 to 0.944 in
- Flat: Yes
- Length Type: 1xD
- Maximum Diameter: 0.9448 in
- Maximum Diameter - Metric: 23.99 mm
- Minimum Diameter: 0.8661 in
- Minimum Diameter - Metric: 22 mm
- Overall Length - Fractional: 4-41/64 in
- Shank Diameter - Decimal: 1 in
- Shank Length - Fractional: 2-9/32 in
- Step Diameter - Fractional: 1-9/64 in
- Step Length - Fractional: 1-19/64 in
- Tool Reference Length - Fractional: 2-31/64 in
- Type: Drill Flute;Chamfer Flute;Replaceable;Stub Length
GEN3SYS® Holder:
- GEN3SYS® Drill Holders penetrate up to 35% faster than competitive drilling products.
- Compatible with GEN3SYS and GEN3SYS XT inserts.
- The GEN3SYS® High Penetration Holders have a highly precise locating pad for absolute repeatability and reductions in TIR.
- Straight and Helical flute options.
- Precision-ground locating slots.
- Cylindrical flanged and flanged flat shank options.
