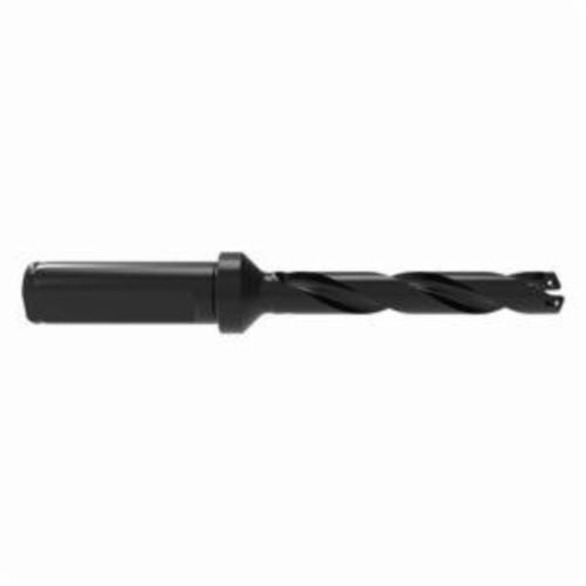

ALLIED 12MM 5X GEN3SYS HLD 3/4" FLG Replaceable Drill Body
ALLIED 60512H-075F
$350.21
/ EA
Out of Stock
- Series: 12
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Coolant Hole Thread: 1/8 in NPT Rear
- Drill Body Length: 3-21/32 in
- Drill Depth - Fractional: 2-9/16 in
- Drilling Capacity: 0.472 to 0.511 in
- Flat: Yes
- Flute Type: Helical
- Length Type: 5xD
- Maximum Diameter: 0.5117 in
- Maximum Diameter - Metric: 12.99 mm
- Minimum Diameter: 0.4724 in
- Minimum Diameter - Metric: 12 mm
- Overall Length - Fractional: 5-43/64 in
- Pipe Tap Rear: 1/8 in (NPT)
- Shank Length - Fractional: 2-1/32 in
- Shank Type: Flanged
- Taxonomy Level 1: Indexable Cutting Tools
- Tool Reference Length - Fractional: 3-47/64 in
- Type: Helical Flute;Replaceable;Standard Length
GEN3SYS® Holder:
- GEN3SYS® Drill Holders penetrate up to 35% faster than competitive drilling products.
- Compatible with GEN3SYS and GEN3SYS XT inserts.
- The GEN3SYS® High Penetration Holders have a highly precise locating pad for absolute repeatability and reductions in TIR.
- Straight and Helical flute options.
- Precision-ground locating slots.
- Cylindrical flanged and flanged flat shank options.
