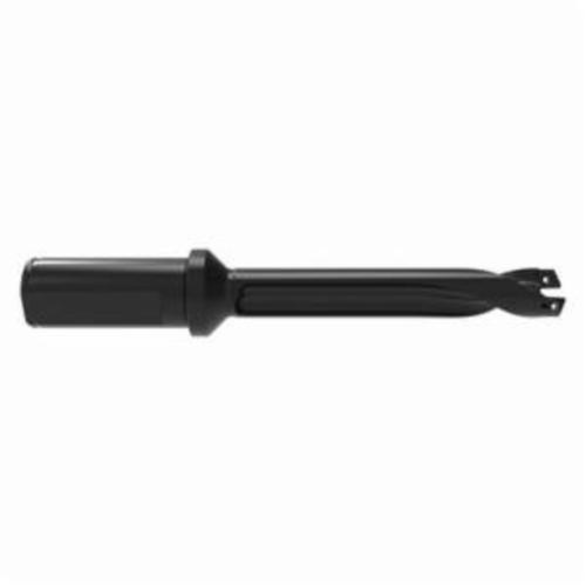

ALLIED 20MM 5X GEN3SYS HLD 1" FLG Replaceable Drill Body
ALLIED 60520S-100F
$478.08
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Straight
- Series: 20
- Shank Diameter: 1 in
- Coolant Hole Thread: 1/8 in NPT Rear
- Drill Body Length: 5-11/16 in
- Drill Depth - Fractional: 4-11/32 in
- Drilling Capacity: 0.787 to 0.866 in
- Flat: Yes
- Length Type: 5xD
- Maximum Diameter: 0.866 in
- Maximum Diameter - Metric: 21.99 mm
- Minimum Diameter: 0.7874 in
- Minimum Diameter - Metric: 20 mm
- Overall Length - Fractional: 7-61/64 in
- Pipe Tap Rear: 1/8 in (NPT)
- Shank Length - Fractional: 2-9/32 in
- Tool Reference Length - Fractional: 5-25/32 in
- Type: Replaceable;Straight Flute
- Shank Diameter - Decimal: 1 in
GEN3SYS® Holder:
- GEN3SYS® Drill Holders penetrate up to 35% faster than competitive drilling products.
- Compatible with GEN3SYS and GEN3SYS XT inserts.
- The GEN3SYS® High Penetration Holders have a highly precise locating pad for absolute repeatability and reductions in TIR.
- Straight and Helical flute options.
- Precision-ground locating slots.
- Cylindrical flanged and flanged flat shank options.
