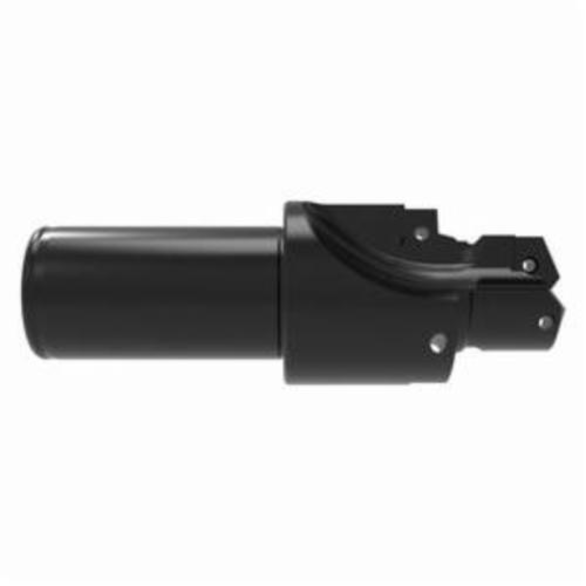

ALLIED #2 12 ACCUPORT MIL SPEC HLDR Replaceable Port Form Body
ALLIED AS5202-122-125F
$1,016.32
/ EA
Out of Stock
- Tube Dash Number: 12
- Pilot Diameter: 0.984 in
- Pilot Diameter - Decimal: 0.984 in
- Pilot Diameter - Metric: 25 mm
- Spot Face Diameter - Decimal: 1.635 in
- Spot Face Diameter - Metric: 41.52 mm
- Shank Diameter - Decimal: 1.25 in
- Shank Diameter - Metric: 31.75 mm
- Overall Length: 5.05 in
- Pilot Length: 1.069 in
- Pipe Tap Rear: 1/4 in
- Port Standard Designation: SAE AS5202
- Port Thread Size: 1 1/16-12 UNJ-3B
- Porting Angle: 60 deg
- Seal Angle: 60 deg
- Seal Angle Diameter - Decimal: 1.237 in
- Seal Angle Diameter - Metric: 31.42 mm
- Seal Pilot Diameter: 1.086 in
- Seal Pilot Length: 0.125 in
- Series: 2
- Shank Diameter: 1.25 in
- Shank Length: 2.281 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.765 in
- Tube Size: -12
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
