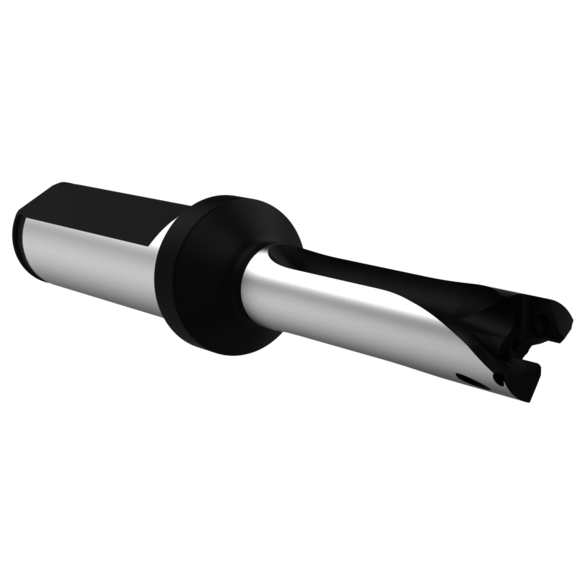

ALLIED 13MM 3X HXT HLD 3/4" FLG Replaceable Drill Body
ALLIED HXT0313S-075F
$385.92
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Straight
- Series: 13
- Shank Diameter: 3/4 in
- Application: High Performance
- Drill Depth - Fractional: 1-21/32 in
- Length Type: 3xD
- Maximum Diameter: 0.5511 in
- Minimum Diameter: 0.5118 in
- Overall Length - Fractional: 4-27/32 in
- Shank Length - Fractional: 2-1/32 in
- Tool Reference Length - Fractional: 2 - 13/16 in
- Shank Diameter - Fractional: 3/4 in
GEN3SYS® XT Pro Holder:
- The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
- The XT Pro holder feaures an increased flute area for chip evacuation.
- The holder also has additonal coolant to the cutting zone to increase insert life and drill stability.
- Available in 3xD, 5xD, 7xD and 10xD holder lengths.
- Available with straight flute.
