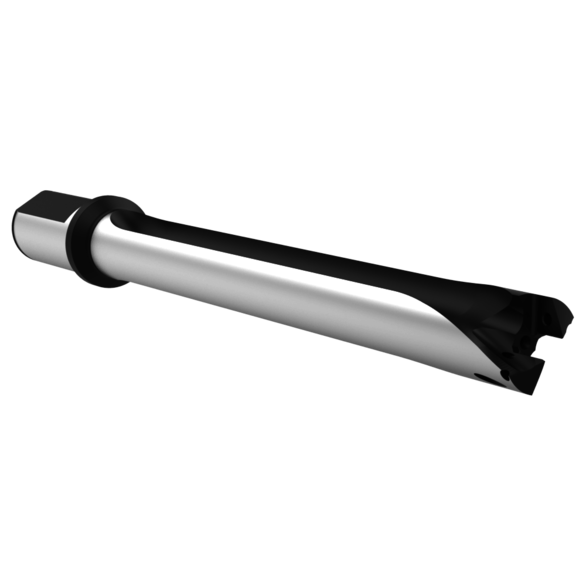

ALLIED 29MM 7X HXT HLD 1-1/4" FLG Replaceable Drill Body
ALLIED HXT0729S-125F
$609.41
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Straight
- Series: 29
- Shank Diameter: 1 1/4 in
- Application: High Performance
- Drill Depth - Fractional: 8-13/16 in
- Length Type: 7xD
- Maximum Diameter: 1.2597 in
- Minimum Diameter: 1.1417 in
- Overall Length - Fractional: 12 - 13/16 in
- Shank Diameter - Fractional: 1 1/4 in
- Shank Length - Fractional: 2-9/32 in
- Tool Reference Length - Fractional: 10 - 17/64 in
GEN3SYS® XT Pro Holder:
- The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
- The XT Pro holder feaures an increased flute area for chip evacuation.
- The holder also has additonal coolant to the cutting zone to increase insert life and drill stability.
- Available in 3xD, 5xD, 7xD and 10xD holder lengths.
- Available with straight flute.
