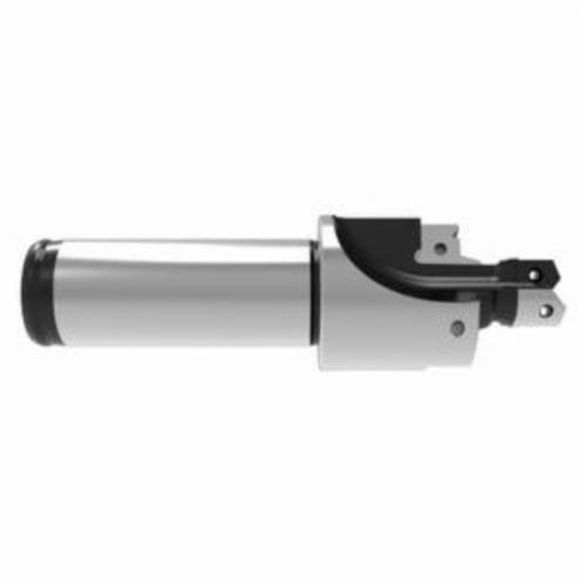

ALLIED #Z -5 RIDGED METRIC ACCUPORT Replaceable Port Form Body
ALLIED I6149-05RZ-16FM
$828.50
/ EA
Out of Stock
- Tube Dash Number: -5
- Pilot Diameter: 0.492 in
- Pilot Diameter - Decimal: 0.492 in
- Pilot Diameter - Metric: 12.5 mm
- Spot Face Diameter - Decimal: 1.024 in
- Spot Face Diameter - Metric: 26 mm
- Shank Diameter - Decimal: 0.63 in
- Shank Diameter - Metric: 16 mm
- Overall Length: 3.18 in
- Pilot Length: 0.556 in
- Port Standard Designation: ISO 6149
- Port Thread Size: M14 X 1.5
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.623 in
- Seal Angle Diameter - Metric: 15.8 mm
- Seal Angle Length: 0.102 in
- Series: Z
- Shank Diameter: 0.63 in
- Shank Length: 1.65 in
- Shank Type: Cylindrical
- Tool Reference Length: 1.527 in
- Tube Size: -5
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
