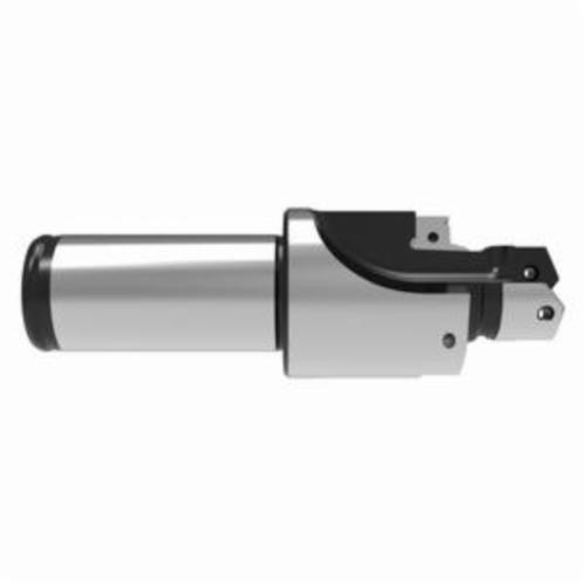

ALLIED #0 -6 RIDGED METRIC ACCUPORT Replaceable Port Form Body
ALLIED I6149-06R0-20FM
$792.54
/ EA
Out of Stock
- Pilot Diameter: 0.571 in
- Pilot Diameter - Decimal: 0.571 in
- Pilot Diameter - Metric: 14.5 mm
- Shank Diameter - Decimal: 0.787 in
- Shank Diameter - Metric: 20 mm
- Overall Length: 3.51 in
- Pilot Length: 0.615 in
- Port Standard Designation: ISO 6149
- Port Thread Size: M16 X 1.5
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.702 in
- Seal Angle Diameter - Metric: 17.8 mm
- Seal Angle Length: 0.102 in
- Series: 0
- Shank Diameter: 0.787 in
- Shank Length: 1.65 in
- Shank Type: Cylindrical
- Tool Reference Length: 1.857 in
- Tube Size: -6
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
