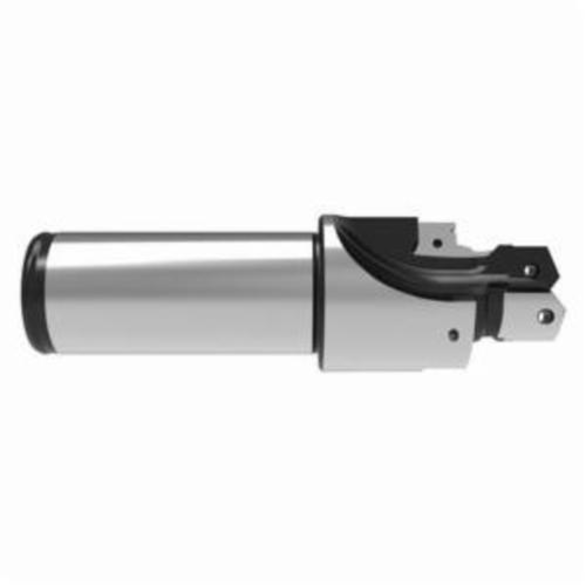

ALLIED #1 -10 RIDGED METRIC ACCUPORT Replaceable Port Form Body
ALLIED I6149-10R1-25FM
$909.76
/ EA
Out of Stock
- Tube Dash Number: -10
- Pilot Diameter: 0.807 in
- Pilot Diameter - Decimal: 0.807 in
- Pilot Diameter - Metric: 20.5 mm
- Spot Face Diameter - Decimal: 1.339 in
- Spot Face Diameter - Metric: 34.01 mm
- Shank Diameter - Decimal: 0.984 in
- Shank Diameter - Metric: 25 mm
- Overall Length: 4.23 in
- Pilot Length: 0.717 in
- Port Standard Designation: ISO 6149
- Port Thread Size: M22 X 1.5
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.938 in
- Seal Angle Diameter - Metric: 23.8 mm
- Seal Angle Length: 0.102 in
- Series: 1
- Shank Diameter: 0.984 in
- Shank Length: 2.091 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.14 in
- Tube Size: -10
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
