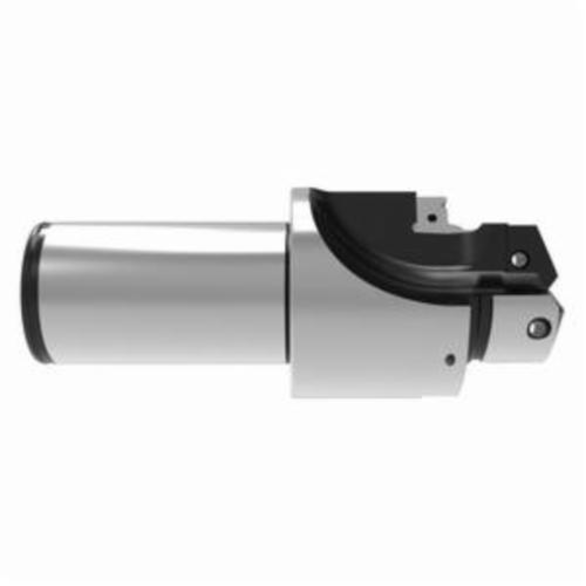

ALLIED #2.5 -16 RIDGED METRC ACCU Replaceable Port Form Body
ALLIED I6149-16R2-32FM
$988.34
/ EA
Out of Stock
- Tube Dash Number: -16
- Pilot Diameter: 1.22 in
- Pilot Diameter - Decimal: 1.22 in
- Pilot Diameter - Metric: 31 mm
- Spot Face Diameter - Decimal: 1.929 in
- Spot Face Diameter - Metric: 48.99 mm
- Shank Diameter - Decimal: 1.26 in
- Shank Diameter - Metric: 32 mm
- Overall Length: 4.92 in
- Pilot Length: 0.874 in
- Port Standard Designation: ISO 6149
- Port Thread Size: M33 X 2
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 1.395 in
- Seal Angle Diameter - Metric: 35.4 mm
- Seal Angle Length: 0.13 in
- Series: 2.5
- Shank Diameter: 1.26 in
- Shank Length: 2.28 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.64 in
- Tube Size: -16
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
