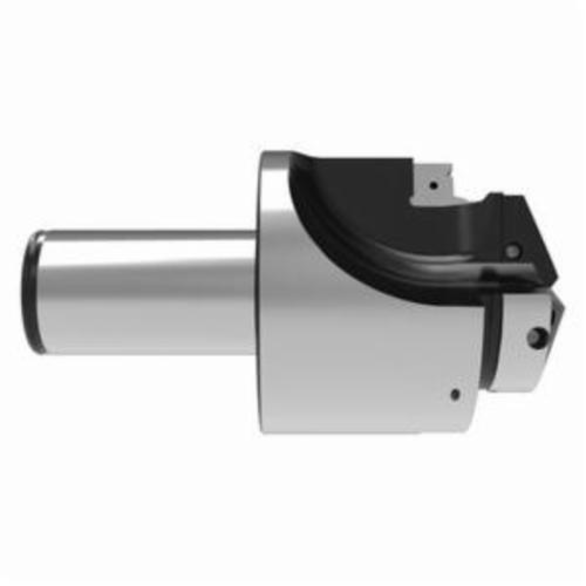

ALLIED #4 -32 RIDGED METRIC ACCUPORT Replaceable Port Form Body
ALLIED I6149-32R4-32FM
$1,068.26
/ EA
Out of Stock
- Tube Dash Number: -32
- Pilot Diameter: 2.283 in
- Pilot Diameter - Decimal: 2.283 in
- Pilot Diameter - Metric: 58 mm
- Spot Face Diameter - Decimal: 2.992 in
- Spot Face Diameter - Metric: 75.99 mm
- Shank Diameter - Decimal: 1.26 in
- Shank Diameter - Metric: 32 mm
- Overall Length: 6.39 in
- Pilot Length: 1.092 in
- Port Standard Designation: ISO 6149
- Port Thread Size: M60 X 2
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 2.458 in
- Seal Angle Diameter - Metric: 62.4 mm
- Seal Angle Length: 0.13 in
- Series: 4
- Shank Diameter: 1.26 in
- Shank Length: 2.58 in
- Shank Type: Cylindrical
- Tool Reference Length: 3.812 in
- Tube Size: -32
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
