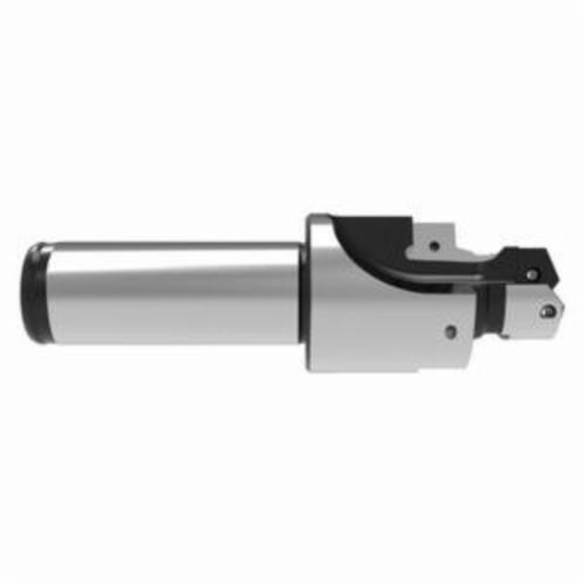

ALLIED #0.5 -8 ACCUPORT HOLDER Replaceable Port Form Body
ALLIED J1926-080-20FM
$816.52
/ EA
Out of Stock
- Tube Dash Number: -8
- Pilot Diameter: 0.689 in
- Pilot Diameter - Decimal: 0.689 in
- Pilot Diameter - Metric: 17.5 mm
- Spot Face Diameter - Decimal: 1.206 in
- Spot Face Diameter - Metric: 30.63 mm
- Shank Diameter - Decimal: 0.787 in
- Shank Diameter - Metric: 20 mm
- Overall Length: 3.63 in
- Pilot Length: 0.689 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 3/4-16 UNF-2B
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.813 in
- Seal Angle Diameter - Metric: 20.7 mm
- Seal Angle Length: 0.106 in
- Series: 0.5
- Shank Diameter: 0.787 in
- Shank Length: 1.65 in
- Shank Type: Cylindrical
- Tool Reference Length: 1.982 in
- Tube Size: -8
The replaceable port form body of the ALLIED #0.5 -8 ACCUPORT HOLDER is compatible with an extensive array of port insert sizes. It is engineered to last but also to improve the process of replacing ports and holding them in place during porting processes. This tool part comes in four different specifications: SAE J1926, ISO 16149:1, SAE AS5202, and JDS G173.1. Buy your ALLIED #0.5 -8 ACCUPORT HOLDER Replaceable Port Form Body from BlackHawk Industrial today.
