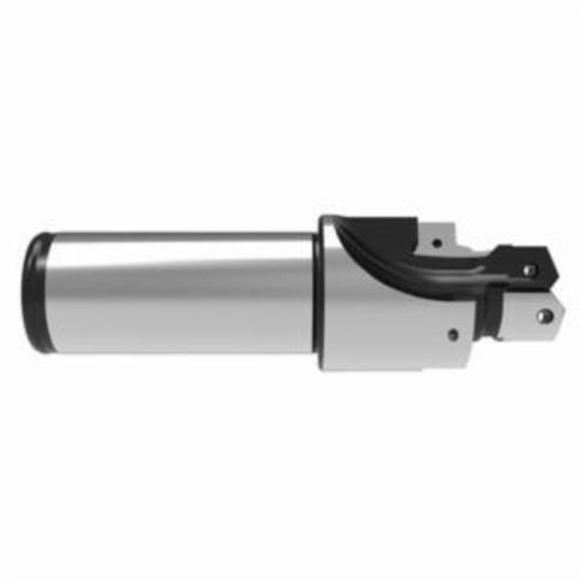

ALLIED #1 10 ACCUPORT HLDR Replaceable Port Form Body
ALLIED J1926-101-25FM
$907.09
/ EA
Out of Stock
- Tube Dash Number: -10
- Pilot Diameter: 0.807 in
- Pilot Diameter - Decimal: 0.807 in
- Pilot Diameter - Metric: 20.5 mm
- Spot Face Diameter - Decimal: 1.344 in
- Spot Face Diameter - Metric: 34.13 mm
- Shank Diameter - Decimal: 0.984 in
- Shank Diameter - Metric: 25 mm
- Overall Length: 4.23 in
- Pilot Length: 0.787 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 7/8-14 UNF-2B
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.945 in
- Seal Angle Diameter - Metric: 24 mm
- Seal Angle Length: 0.106 in
- Series: 1
- Shank Diameter: 0.984 in
- Shank Length: 2.091 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.14 in
- Tube Size: -10
The ALLIED #1 10 ACCUPORT HLDR Replaceable Port Form Body is an ideal solution for securely holding the port insert during porting. The machine-engineered construction guarantees easy removal and replacement of worn-out parts. The JDS Metric Accuport is built to last. The ALLIED #1 10 ACCUPORT HLDR Replaceable Port Form Body is available in four specifications: SAE J1926, ISO 16149:1, SAE AS5202, and JDS G173.1. Check these specs before ordering to ensure proper delivery. Order your part from BlackHawk Industrial today!
