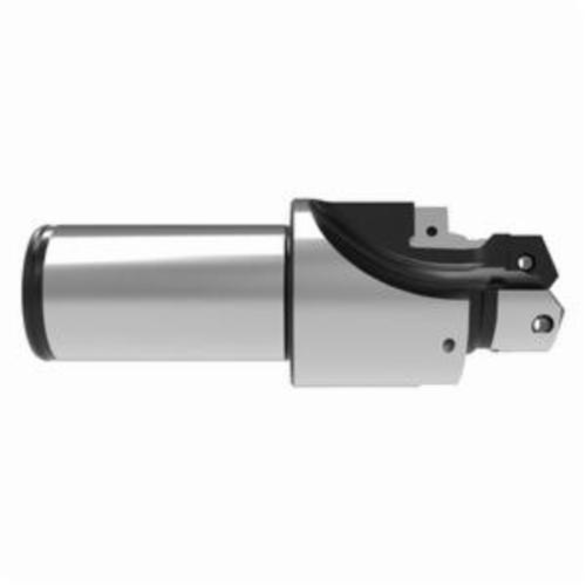

ALLIED #2 -12 ACCUPORT HOLDER Replaceable Port Form Body
ALLIED J1926-122-32FM
$936.40
/ EA
Out of Stock
- Tube Dash Number: -12
- Pilot Diameter: 0.984 in
- Pilot Diameter - Decimal: 0.984 in
- Pilot Diameter - Metric: 25 mm
- Spot Face Diameter - Decimal: 1.655 in
- Spot Face Diameter - Metric: 42.03 mm
- Shank Diameter - Decimal: 1.26 in
- Shank Diameter - Metric: 32 mm
- Overall Length: 4.92 in
- Pilot Length: 0.906 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 1 1/16-12 UN-2B
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 1.15 in
- Seal Angle Diameter - Metric: 29.2 mm
- Seal Angle Length: 0.138 in
- Series: 2
- Shank Diameter: 1.26 in
- Shank Length: 2.28 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.64 in
- Tube Size: -12
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
