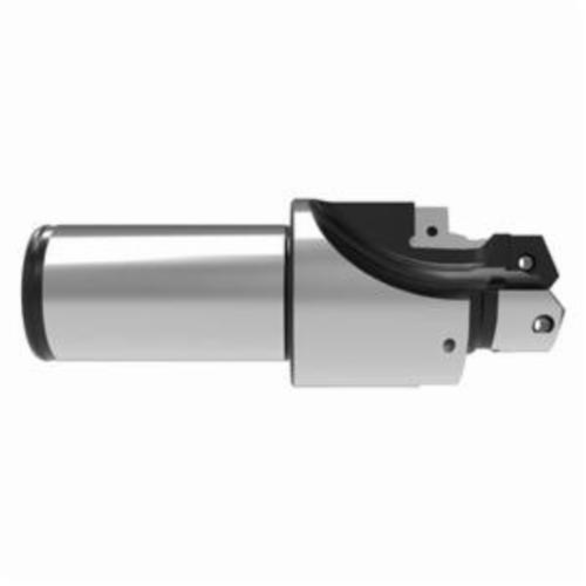

ALLIED #2 -14 ACCUPORT HOLDER Replaceable Port Form Body
ALLIED J1926-142-32FM
$960.37
/ EA
Out of Stock
- Tube Dash Number: -14
- Pilot Diameter: 1.102 in
- Pilot Diameter - Decimal: 1.102 in
- Pilot Diameter - Metric: 28 mm
- Spot Face Diameter - Decimal: 1.781 in
- Spot Face Diameter - Metric: 45.23 mm
- Shank Diameter - Decimal: 1.26 in
- Shank Diameter - Metric: 32 mm
- Overall Length: 4.92 in
- Pilot Length: 0.906 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 1 3/16-12 UN-2B
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 1.276 in
- Seal Angle Diameter - Metric: 32.4 mm
- Seal Angle Length: 0.138 in
- Series: 2
- Shank Diameter: 1.26 in
- Shank Length: 2.28 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.64 in
- Tube Size: -14
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
