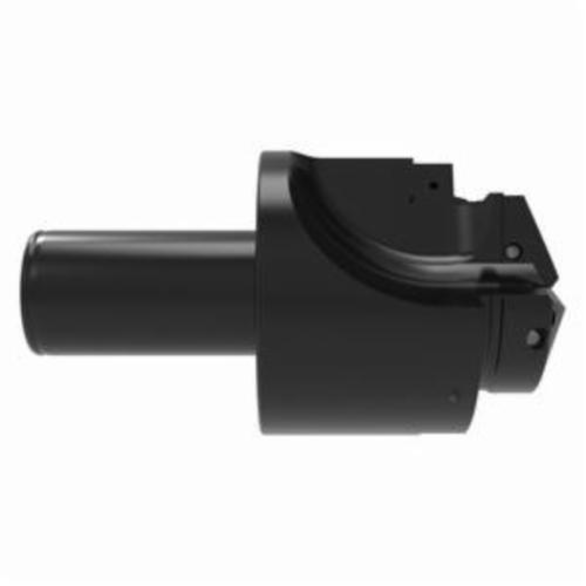

ALLIED #4 -32 ACCUPORT HOLDER Replaceable Port Form Body
ALLIED J1926-324-150F
$989.68
/ EA
Out of Stock
- Tube Dash Number: -32
- Pilot Diameter: 2.421 in
- Pilot Diameter - Decimal: 2.421 in
- Pilot Diameter - Metric: 61.5 mm
- Spot Face Diameter - Decimal: 3.47 in
- Spot Face Diameter - Metric: 88.13 mm
- Shank Diameter - Decimal: 1.5 in
- Shank Diameter - Metric: 38.1 mm
- Overall Length: 6.5 in
- Pilot Length: 0.906 in
- Pipe Tap Rear: 1/4 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 2 1/2-12 UN-2B
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 2.589 in
- Seal Angle Diameter - Metric: 65.8 mm
- Seal Angle Length: 0.138 in
- Series: 4
- Shank Diameter: 1.5 in
- Shank Length: 2.688 in
- Shank Type: Cylindrical
- Tool Reference Length: 3.812 in
- Tube Size: -32
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
