- Series: R34
- Coolant Through: Yes
- Drill Body Length: 11-1/4 in
- Drill Depth - Fractional: 9-1/32 in
- Drilling Capacity: 1-7/8 to 2 in
- Gauge Length - Fractional: 11-9/32 in
- Length Type: 4.5 X D
- Maximum Diameter: 2 in
- Minimum Diameter: 1.875 in
- Shank Type: CV 50
- Taxonomy Level 1: Indexable Cutting Tools
- Type: Straight Flute
- Flute Type: Straight

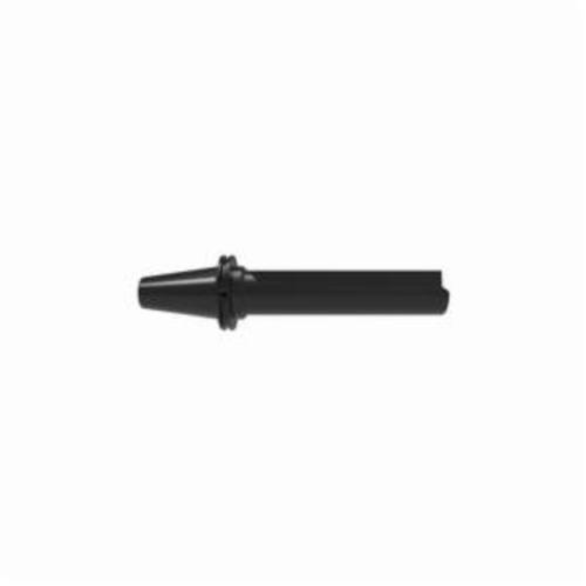

Revolution Drill® Holder:
- The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
- Adjustable up to 0.200" (5mm) on diameter.
- Replaceable cartridges provide re-buildable function.
- Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
- Available for Stack Plate application.
