Allied Machine & Engineering

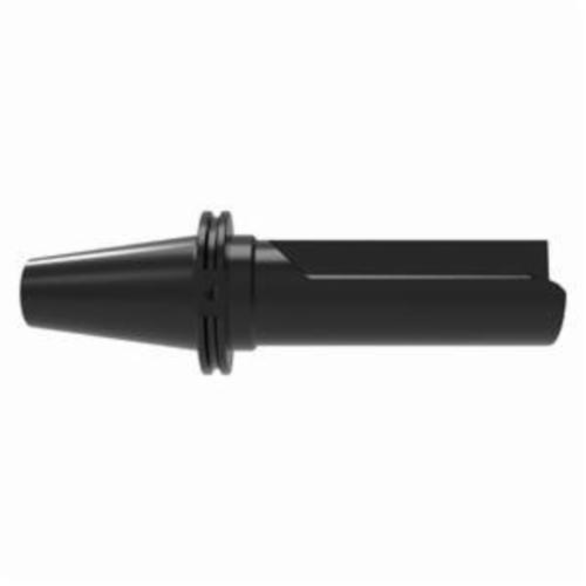

ALLIED 2.6-2.8 Rev. 2.2D CV50 SP Indexable Drill Body

ALLIED SP44X22-CV50
$1,736.06 / EA
Out of Stock
ALLIED 2.6-2.8 Rev. 2.2D CV50 SP Indexable Drill Body
  • Shank Type: CV 50
  • Flute Type: Straight
  • Series: R44
  • Coolant Through: Yes
  • Drill Body Length: 8-59/64 in
  • Drill Depth - Fractional: 6-1/4 in
  • Drilling Capacity: 2.6 to 2.8 in
  • Gauge Length - Fractional: 8-59/64 in
  • Length Type: 2.2 X D
  • Maximum Diameter: 2.8 in
  • Minimum Diameter: 2.6 in
  • Type: Straight Flute

Revolution Drill® Holder:

  • The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
  • Adjustable up to 0.200" (5mm) on diameter.
  • Replaceable cartridges provide re-buildable function.
  • Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
  • Available for Stack Plate application.
