Allied Machine & Engineering

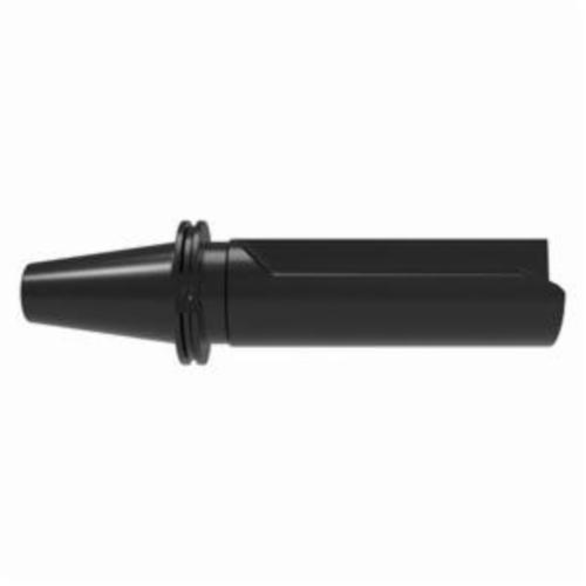

ALLIED 3.0-3.2 Rev. 2.5D CV50 SP Indexable Drill Body

ALLIED SP48X25-CV50
$1,888.13 / EA
Out of Stock
ALLIED 3.0-3.2 Rev. 2.5D CV50 SP Indexable Drill Body
  • Shank Type: CV 50
  • Flute Type: Straight
  • Series: R48
  • Coolant Through: Yes
  • Drill Depth - Fractional: 7-63/64 in
  • Gauge Length - Fractional: 10-23/32 in
  • Length Type: 2.5 X D
  • Maximum Diameter: 3.2 in
  • Minimum Diameter: 3 in

Revolution Drill® Holder:

  • The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
  • Adjustable up to 0.200" (5mm) on diameter.
  • Replaceable cartridges provide re-buildable function.
  • Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
  • Available for Stack Plate application.
