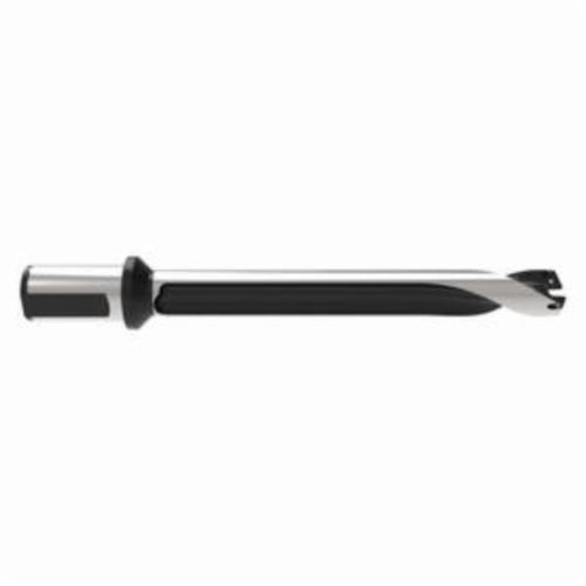

ALLIED 32MM 7X GEN3SYS HLD 40 FLG Replaceable Drill Body
ALLIED ST07320-40FM
$650.88
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Straight
- Series: 32
- Coolant Hole Thread: 1/4 in BSP Rear
- Drill Body Length: 297.7 mm
- Drilling Capacity: 32 to 35 mm
- Flat: Yes
- Length Type: 7xD
- Maximum Diameter - Metric: 35 mm
- Minimum Diameter - Metric: 32 mm
- Shank Diameter - Decimal: 1.5748 in
- Tool Holder Style: ST07320
- Type: Metric;Replaceable;Standard Length;Straight Flute
- Shank Diameter - Metric: 40 mm
GEN3SYS® XT Structural Steel Holder:
- A combination of a unique holder and insert designed specifically for the machines, material and environment commonly found in the Structural Steel Industry.
- Enhancements to both the insert and holder provide the superior chip formation, life, and toughness.
- Specifically designed for the Structural Steel Industry.
- Superior chip formation for excellent chip evacuation.
- Available in 3, 5, and 7xD lengths.
