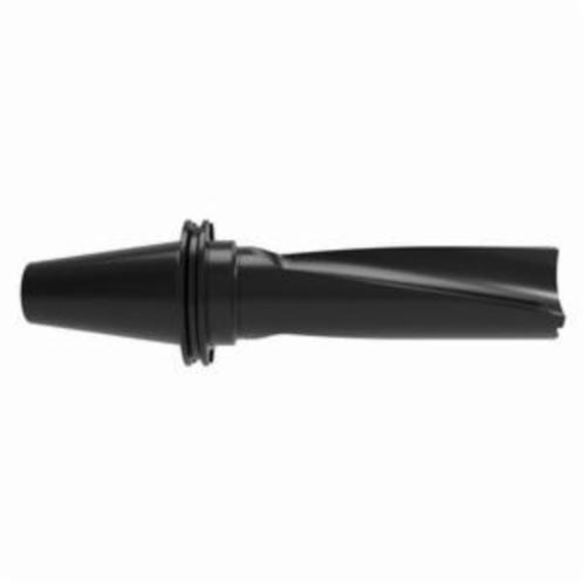

ALLIED 63 APX 3X HLDR CV50 SHK Replaceable Drill Body
ALLIED W6303H-CV50
$2,232.58
/ EA
Out of Stock
- Shank Type: CV 50
- Flute Type: Helical
- Series: 63
- Assembled Overall Length - Fractional: 15-7/16 in
- Assembled Reference Length - Fractional: 11-7/16 in
- Drill Body Length: 11-7/16 in
- Drill Depth - Fractional: 7-7/8 in
- Drilling Capacity: 2.48 to 2.755 in
- Length Type: 3xØ
- Maximum Diameter: 2.7555 in
- Maximum Diameter - Metric: 69.99 mm
- Minimum Diameter: 2.48 in
- Minimum Diameter - Metric: 63 mm
- Tool Holder Style: W6303H
- Type: Helical Flute;Replaceable
APX Holder:
- Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill.
- The tool uses a fixed series body, with various heads that determine the cutting diameter.
- Bodies are available from stock with a 2.000" flang.
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes.
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength.
