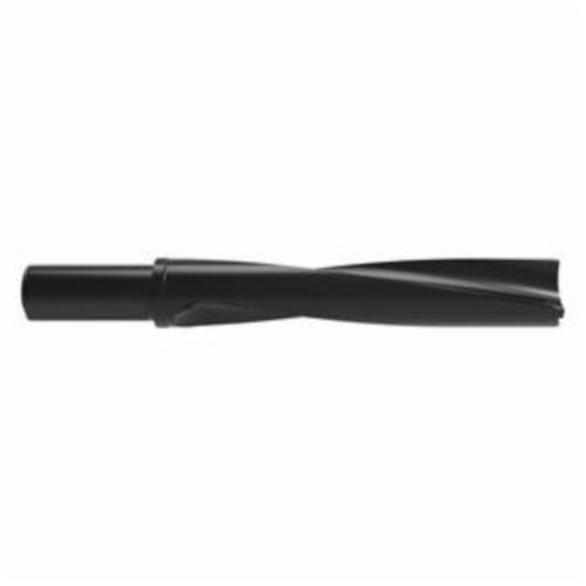

ALLIED 63 APX 5X HLDR MET FLG SHK Replaceable Drill Body
ALLIED W6305H-50FM
$1,548.29
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Helical
- Series: 63
- Coolant Hole Thread: 1/4 in BSP Rear
- Drill Body Length: 402.6 mm
- Drilling Capacity: 63 to 69.99 mm
- Length Type: 5xØ
- Maximum Diameter: 2.7555 in
- Maximum Diameter - Metric: 69.99 mm
- Minimum Diameter: 2.48 in
- Minimum Diameter - Metric: 63 mm
- Shank Diameter - Decimal: 1.9685 in
- Shank Diameter - Metric: 50 mm
- Tool Holder Style: W6305H
- Type: Helical Flute;Metric;Replaceable
APX Holder:
- Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill.
- The tool uses a fixed series body, with various heads that determine the cutting diameter.
- Bodies are available from stock with a 2.000" flang.
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes.
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength.
