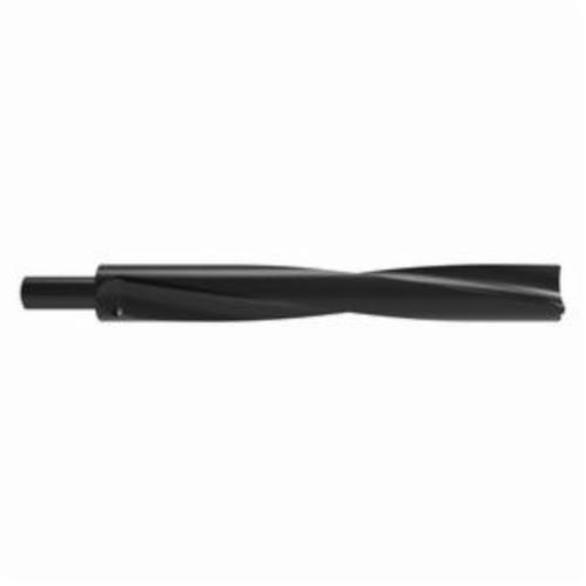

ALLIED 89 APX 8X HLDR FLANGED SHK Replaceable Drill Body
ALLIED W8908H-200F
$2,582.78
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Helical
- Series: 89
- Shank Diameter: 2 in
- Assembled Overall Length - Fractional: 34-3/64 in
- Assembled Reference Length - Fractional: 29-35/64 in
- Coolant Hole Thread: 1/4 in NPT Rear
- Drill Body Length: 29-35/64 in
- Drill Depth - Fractional: 27-5/8 in
- Drilling Capacity: 3.503 to 3.74 in
- Length Type: 8xØ
- Maximum Diameter: 3.74 in
- Maximum Diameter - Metric: 94.99 mm
- Minimum Diameter: 3.5036 in
- Minimum Diameter - Metric: 89 mm
- Shank Diameter - Decimal: 2 in
- Shank Length - Fractional: 4-1/2 in
- Tool Holder Style: W8908H
- Type: Deep Hole;Helical Flute;Replaceable
APX Holder:
- Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill.
- The tool uses a fixed series body, with various heads that determine the cutting diameter.
- Bodies are available from stock with a 2.000" flang.
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes.
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength.
