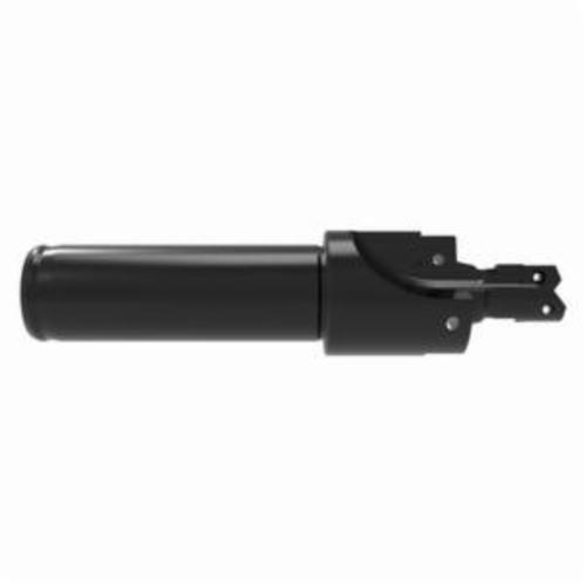

ALLIED #Y ACCUPORT -04 EXT PILOT Replaceable Port Form Body
ALLIED X1926-04Y-063F
$921.74
/ EA
Out of Stock
- Pilot Diameter: 0.386 in
- Pilot Diameter - Decimal: 0.3860 in
- Pilot Diameter - Metric: 9.8 mm
- Shank Diameter - Decimal: 0.6250 in
- Shank Diameter - Metric: 15.9 mm
- Overall Length: 3.65 in
- Pilot Length: 0.801 in
- Pipe Tap Rear: 1/16 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 7/16-20 UNF-2B
- Seal Angle: 12 deg
- Seal Angle Diameter - Decimal: 0.49 in
- Seal Angle Diameter - Metric: 12.5 mm
- Seal Angle Length: 0.106 in
- Series: Y
- Shank Diameter: 0.625 in
- Shank Length: 1.875 in
- Shank Type: Cylindrical
- Tool Reference Length: 1.777 in
- Tube Size: -4
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
