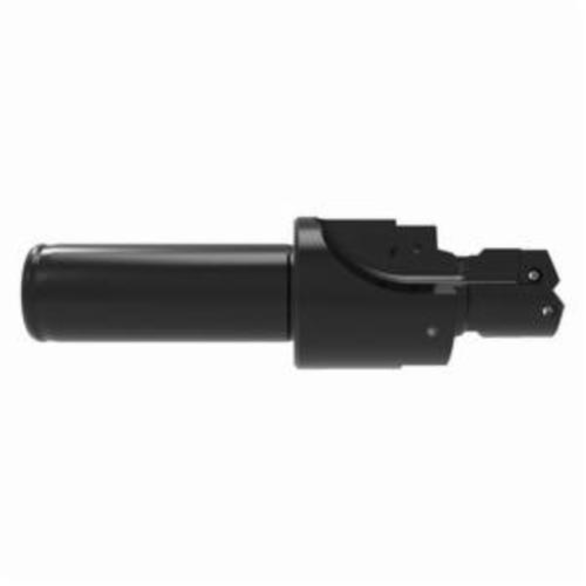

ALLIED #0.5 ACCUPORT -08 EXT PILOT Replaceable Port Form Body
ALLIED X1926-080-075F
$1,018.98
/ EA
Out of Stock
- Tube Dash Number: -8
- Pilot Diameter: 0.689 in
- Pilot Diameter - Decimal: 0.689 in
- Pilot Diameter - Metric: 17.5 mm
- Spot Face Diameter - Decimal: 1.206 in
- Spot Face Diameter - Metric: 30.63 mm
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Metric: 19.1 mm
- Overall Length: 4.2 in
- Pilot Length: 0.939 in
- Pipe Tap Rear: 1/8 in
- Port Standard Designation: SAE J-1926
- Port Thread Size: 3/4-16 UNF-2B
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.813 in
- Seal Angle Diameter - Metric: 20.7 mm
- Seal Angle Length: 0.106 in
- Series: 0.5
- Shank Diameter: 0.75 in
- Shank Type: Cylindrical
- Tool Reference Length: 2.232 in
- Tube Size: -8
- Type: Extended
AccuPort 432® Holder:
- Single Operation Port Hole Drilling Solutions.
- Allied's revolutionary port hole drilling system combines two manufacturing functions.
- The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due Holders range in size for (-4) to (-32) tube size.
- Produced to strict manufacturing tolerances.
- Available in 4 different specifications: SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1.
- Drill and finish forms port in one operation For ports and stud end.
